Pine Mountain E1
A 27.5″ steel frame hardtail trail e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
$3,359Frame | Steel |
---|---|
Suspension | Hardtail, 120mm |
Fork | Suntour RAIDON |
Wheels | 27.5″ Aluminum |
Drivetrain | 1 × 10 |
Groupset | Deore |
Motor | Shimano 250W 60Nm mid-drive |
Battery | Shimano 418Wh |
Brakes | Hydraulic Disc |
For This Bike
5'4" – 5'8"
5'6" – 5'11"
5'9" – 6'1"
5'11" – 6'3"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2020 · McCoy
Who says hardtails can’t have character?
Jun 2020 · Logan Watts
The 2020 Pine Mountain 2 is an affordable bikepacking-specific trail hardtail with a record number of threaded eyelets. Here's the full review…
A happy-medium geometry that offers a snappy feel on the trail, solid climbing prowess, and a fairly stable ride
Built around 29 x 2.6” tires
Unbelievable amount of bosses and a downloadable diagram for making a custom frame bag
Well-priced as an entry level bikepacking bike, but there are a few needed upgrades
Vee Flow Snap tires are horrible and dangerous
Geometry misses the ideal mark with a reach that’s a little too short
Not as compliant as the older model
Heavy build with few disappointing components; handlebar is too stiff and fork is just okay
Mar 2020 · Pat Donahue
The redesigned Marin Pine Mountain 2 is a supremely versatile bike that is comfortable in many situations. This steel bicycle was designed with a clear...
Sep 2017
It's rare for a bike under 2K catches our eye but the Marin Pine Mountain 1 has much to offer at $700 under that mark...
Dec 2016 · Alan Muldoon
The Marin Pine Mopuntain rides more like an adventure bike than a trail hardtail designed to get your pulse racing.
Steel frame absorbs vibrations
Geometry needs a refresh
Frame | Series 3 Double Butted & Heat Treated CrMo, 27.5+ Wheels, Cast Motor Mount, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts BB Standard: BSA, 73mm, Threaded |
---|---|
Fork | SR Suntour Raidon Boost, 120mm Travel, Air Spring w/ Adjustable Damping, 15x110 Thru-Bolt, 44mm Offset Travel: 120mm Spring Type: Air |
Bottom Bracket | External Sealed Cartridge Bearings |
Headset | FSA Orbit, NO.42/ACB. C-40-ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
Stem | Marin 3D Forged Alloy, 35mm |
Handlebar | Marin Pine Mountain Trail Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep |
Saddle | Marin Pine Mountain Trail |
Seatpost | Marin Alloy, 30.9mm Type: Rigid |
Pedals | Nylon Platform |
Grips | Marin BearPaw Locking |
Rear Derailleur | Shimano Deore Shadow Plus SGS 10-Speed |
---|---|
Front Derailleur | - |
Crank | Marin Forged Alloy, Steel Narrow-Wide 38T Chainring |
Shifters | Shimano Deore 1x10-Speed |
Cassette | SunRace 10-Speed, 11-46T |
Chain | KMC X10E |
Brakes | Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotor Type: Hydraulic Disc |
Brake Levers | Shimano MT400 Hydraulic |
Rims | Marin Aluminum Double Wall, 38mm Inner, Disc Specific, Tubeless Compatible |
---|---|
Spokes | 14g Black Stainless Steel |
Front Hub | Forged Alloy, 110x15mm, Centerlock Disc, 32H |
Rear Hub | Forged Alloy, 148x12mm, Centerlock Disc, 32H |
Tires | Vee Tire Crown Gem, 27.5x2.8", Synthesis Sidewall, Tubeles Compatible |

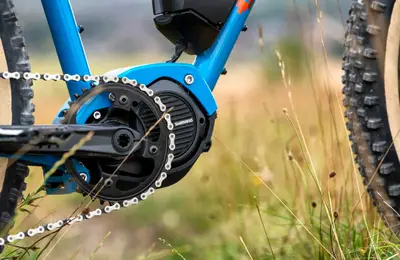

Motor | Shimano STEPS E7000 System |
---|---|
Battery | Shimano E8010, 418Wh Recycling Program: ♻️ Call2Recycle |
Last updated September 11
