FSA Gossamer Pro, 1x11 Megatooth, 42T Chainring, BB392EVO Alloy Spindle

Marin Full Carbon w/ Taper Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Series 2 CrMo, Beyond Road Geometry, Thru-Axle, Disc Brake, Integrated Headset, Fender and Rack Mounts

Forged Aluminum Alloy, 100x15mm, 6-Bolt Disc, 32H

Marin Butted Alloy, Compact 12º Flared Drop

FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Forged Aluminum Alloy, 142x12mm, Alloy Axle, Quad Cartridge Sealed Bearings, SRAM XD Driver, 6-Bolt Disc, 32H

WTB KOM i25, 25mm Inner, Tubeless Compatible

TranzX YSP11 Dropper Post, 105mm Travel, 27.2mm

SRAM Rival 1x11 Speed, Left Side Modified For Dropper Post Lever

WTB Byway, 650Bx47, Folding Bead, Tubeless Compatible

The Nicasio is for the rider looking for something different and modern, yet with traditional steel construction. Classic lines and CrMo frame tubes have the soul of a classic bike, with the geometry and 700C x 30mm-40mm or 650B x 47mm tires to let riders handle any surface.

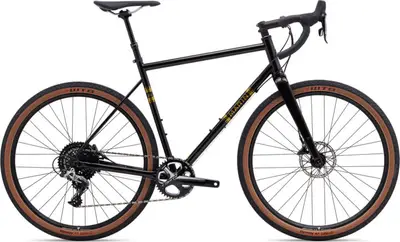

Marin Nicasio Ridge

50cm

52cm

54cm

56cm

58cm

60cm

A steel frame gravel bike with upper mid-range components and sram rival hydraulic disc brakes.

Frame	Steel
Suspension	Rigid
Fork	Carbon
Wheels	650b Aluminum
Drivetrain	1 × 11
Groupset	Rival
Brakes	SRAM Rival Hydraulic Disc
Seatpost	Dropper

Frame	Series 2 CrMo, Beyond Road Geometry, Thru-Axle, Disc Brake, Integrated Headset, Fender and Rack Mounts BB Standard: BSA, 68mm, Threaded
Fork	Marin Full Carbon w/ Taper Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Bottom Bracket	FSA BB-EVO7000, BSA Threaded
Headset	FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Stem	Marin 3D Forged Alloy
Handlebar	Marin Butted Alloy, Compact 12º Flared Drop
Saddle	Marin Beyond Road Concept
Seatpost	TranzX YSP11 Dropper Post, 105mm Travel, 27.2mm Type: Dropper
Pedals	Commute Platform
Grips	Marin Shock Absorbing Perforated Tape

Rear Derailleur	SRAM Rival 1
Front Derailleur	-
Crank	FSA Gossamer Pro, 1x11 Megatooth, 42T Chainring, BB392EVO Alloy Spindle
Shifters	SRAM Rival 1x11 Speed, Left Side Modified For Dropper Post Lever
Cassette	e*thirteen TRS 11-Speed, 9-44T
Chain	KMC X11
Brakes	SRAM Rival Hydraulic Type: SRAM Rival Hydraulic Disc
Brake Levers	SRAM Rival Hydraulic

Rims	WTB KOM i25, 25mm Inner, Tubeless Compatible
Spokes	14g Black Stainless Steel
Front Hub	Forged Aluminum Alloy, 100x15mm, 6-Bolt Disc, 32H
Rear Hub	Forged Aluminum Alloy, 142x12mm, Alloy Axle, Quad Cartridge Sealed Bearings, SRAM XD Driver, 6-Bolt Disc, 32H
Tires	WTB Byway, 650Bx47, Folding Bead, Tubeless Compatible

2020 MarinNicasio Ridge

2020 Marin
Nicasio Ridge
