Promax Render R Road Mechanical Disc, 160mm Rotor

CrMo, Fender and Rack Eyelets, IS Disc Mount

Series 1 Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount

Marin Butted Alloy, Compact 12º Flared Drop

Marin Aluminum Double Wall, 19mm Inner, Disc Specific

Vee Tire, Apache Chief, 700Cx30, Wire Bead

The Nicasio is for the rider looking for something different and modern, yet with traditional steel construction. Classic lines and CrMo frame tubes have the soul of a classic bike, with the geometry and 700C x 30mm-40mm or 650B x 47mm tires to let riders handle any surface.

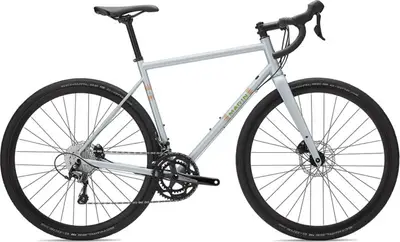

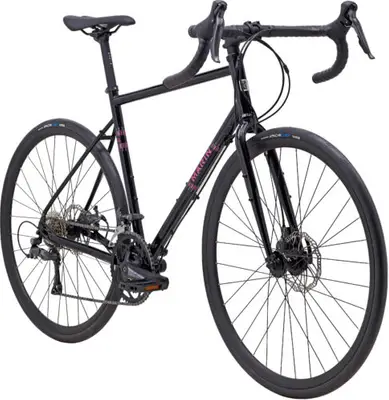

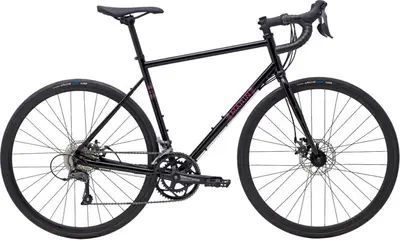

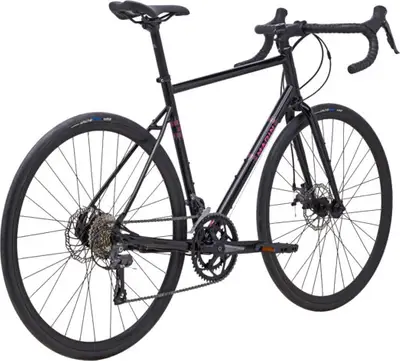

Marin Nicasio 1

47cm

50cm

52cm

54cm

56cm

58cm

60cm

A steel frame gravel bike with mid-range components and promax mechanical disc brakes.

Frame	Steel
Suspension	Rigid
Fork	Steel
Wheels	700c Aluminum
Drivetrain	2 × 8
Groupset	Claris
Brakes	Promax Mechanical Disc

Frame	Series 1 Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
Fork	CrMo, Fender and Rack Eyelets, IS Disc Mount
Bottom Bracket	Sealed Cartridge Bearings, Square Taper
Headset	FSA No.8D, Sealed Cartridge Bearings
Stem	Marin 3D Forged Alloy
Handlebar	Marin Butted Alloy, Compact 12º Flared Drop
Saddle	Marin Beyond Road Concept
Seatpost	Marin Alloy, 27.2mm Type: Rigid
Pedals	Commute Platform
Grips	Marin Comfort Tape

Rear Derailleur	Shimano Claris 8-Speed
Front Derailleur	Shimano Claris
Crank	FSA Tempo Compact, 50/34T
Shifters	Shimano Claris 2x8-Speed
Cassette	SunRace 8-Speed, 11-32T
Chain	KMC Z8
Brakes	Promax Render R Road Mechanical Disc, 160mm Rotor Type: Promax Mechanical Disc
Brake Levers	Shimano w/ Integrated Shifters

Rims	Marin Aluminum Double Wall, 19mm Inner, Disc Specific
Spokes	14g Black Stainless Steel
Front Hub	Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub	Forged Aluminum Alloy, 6-Bolt Disc, 32H
Tires	Vee Tire, Apache Chief, 700Cx30, Wire Bead

2020 MarinNicasio 1

2020 Marin
Nicasio 1
