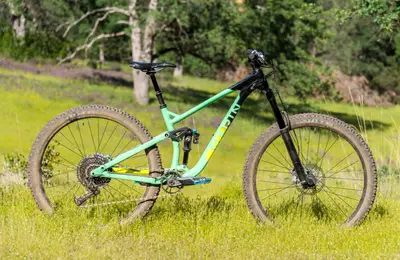

2020 Marin Alpine Trail 8

High-end component level aluminum frame enduro bike

View on marinbikes.com

2020 Marin Alpine Trail 8
  • MSRP $3,399
  • Suspension Full
  • Front Travel 160mm
  • Rear Travel 150mm
  • Frame Aluminum
  • Fork 
    Fox Performance Float 36
  • Wheels 29″
  • Drivetrain 1 × 12
  • Groupset 
    SRAM NX Eagle
  • Brakes Hydraulic Disc
  • Seatpost Dropper post

1 × 12 — 12 speed

2020 Marin Alpine Trail 8
28 mph
Similar Bikes
26 mph

The 2020 Alpine Trail 8 is geared about the same as similar bikes for riding up hills.

Similar bikes won‘t keep up with the 2020 Alpine Trail 8 while riding downhill or sprinting.

Estimated Spec Level
est. spec level →$0$500$1,000$1,500$2,000$2,500$3,000$3,500
This bike
Other enduro bikes

Estimated spec level of the Alpine Trail 8 compared to other enduro bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.  Learn more »

FrameSeries 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Housing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
ForkFox 36 Performance, 160mm travel, 29", 110x15mm Boost Kabolt Thru-Axle, 51mm Offset
Rear ShockFox Float DPX2, Performance, EVOL Air Spring, 3 Position Compression Adjsutment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mm x M8 Lower Mount
Bottom BracketExternal Sealed Cartridge Bearings
HeadsetFSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
StemDeity Copperhead Stem, 35mm
HandlebarDeity Blacklabel, 800mm Width, 25mm Rise, Custom Color
SaddleWTB Volt Race
SeatpostKS LEV Dropper Post, Southpaw Lever, Size S: 125mm Travel, All Other Sizes: 150mm Travel, 30.9mm
GripsMarin Locking
Rear DerailleurSRAM NX Eagle
ShiftersSRAM NX Eagle, 12-Speed
CrankSRAM Descendant 6K Aluminum, Direct Mount 12-Speed 32T, DUB, Boost Spacing, 170mm length
CassetteSRAM XG-1275 12-Speed, 10-50T
ChainSRAM NX Eagle
BrakesTRP Slate T4, 4-Piston Hydraulic Disc, 203mm Rotor
Brake LeversTektro Orion, I-Spec II Compatible
RimsMarin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H Tubeless Compatible
Spokes14g Black Stainless Steel
Front HubForged Alloy, 110x15mm, 6-Bolt Disc, 32H
Rear HubForged Alloy, 148x12mm, Alloy Axle, Quad Sealed Cartridge Bearings, 6-Bolt Disc, 32H, XD Driver
TiresVee Tire Flow Snap, 29x2.6”, Tackee Compound, 72 TPI, Tubeless Compatible
