2019 Marin
San Anselmo DS-E

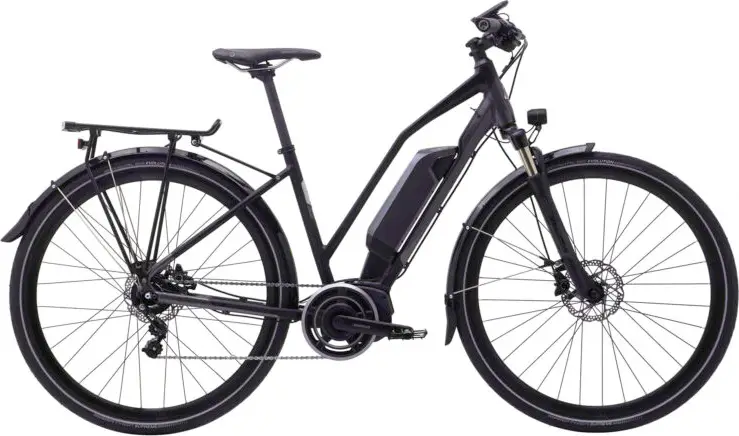

A 700c aluminum frame hybrid e-bike with modest components and hydraulic disc brakes.
Compare the full range
| MSRP | $3,199 |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 63mm |
| Fork | Suntour NCX |
| Wheels | 700c Aluminum |
| Drivetrain | Internally Geared Hub |
| Groupset | Alfine, Shimano |
| Motor | Shimano 250W 50Nm mid-drive |
| Battery | Shimano 418Wh |
| Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Series 3 E 6061 Aluminum, 700C wheels, Post Mount Disc Speci c Forged Dropouts, Fender, Rack and Integrated Kickstand Mounts BB Standard: STEPS, Press Fit |
|---|---|
| Fork | SR Suntour NCXE LOR, Remote Hydraulic Lockout, Adjustable Damping, 63mm Travel Travel: 63mm Spring Type: Air |
| Bottom Bracket | STEPS, press-fit |
| Headset | FSA Orbit CE No. 8D |
| Stem | Marin 3D Forged Alloy |
| Handlebar | Marin Flat Top Riser |
| Saddle | Ergon SM30 Comp |
| Seatpost | Marin Carbon Type: Rigid |
| Pedals | Dual Sport Platform |
| Grips | Ergon GS1-L Ergonomic |
| Crank | Shimano STEPS E6000 |
|---|---|
| Shifters | Shimano Alfine 11-Speed |
| Cassette | Shimano Alfine, 18T |
| Chain | Shimano HG-93 |
| Brakes | Shimano BR-M446 Hydraulic Disc, 160mm Rotor Type: Hydraulic Disc |
| Brake Levers | Shimano Hydraulic |
| Rims | Marin Aluminum Double Wall, 30mm Tall, 21mm ID, Disc Specific |
|---|---|
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Aluminum Alloy, 6-Bolt Disc, 32H |

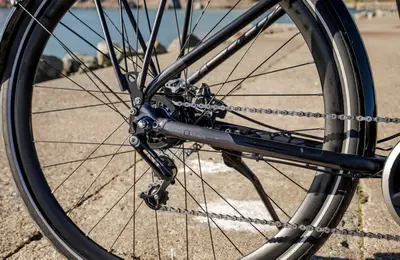

| Rear Hub | Shimano Alfine 11-Speed Internally Geared Hub |
| Tires | Schwalbe Marathon Supreme HD, 700Cx40, Speed Guard Puncture Protection |
| Motor | Shimano STEPS E6000, 44T Chainring |
|---|---|
| Battery | Shimano Steps, 36V, 418 Wh Recycling Program: ♻️ Call2Recycle |

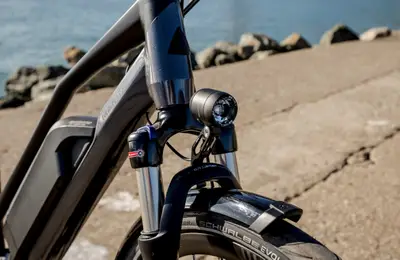

| Lights | Supernova |
|---|---|
| Fenders | SKS Bluemels B50 |

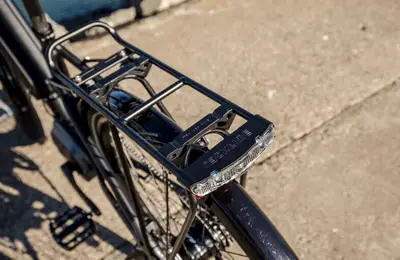

| Racks | Racktime Stand It Shine w/ Integrated Rear Light |
