2019 Marin
Pine Mountain 2
A 27.5″ steel frame hardtail trail bike with high-end components.
Compare the full range
| MSRP | $2,999 |
|---|---|
| Frame | Steel |
| Suspension | Hardtail, 120mm |
| Fork | Fox Performance Float 34 |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | XT |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Aug 2020 · McCoy
Overall, Marin did a great job targeting the adventure bike rider and...
Jun 2020 · Logan Watts
The 2020 Pine Mountain 2 is an affordable bikepacking-specific trail hardtail with a record number of threaded eyelets. Here's the full review…
A happy-medium geometry that offers a snappy feel on the trail, solid climbing prowess, and a fairly stable ride
Built around 29 x 2.6” tires
Unbelievable amount of bosses and a downloadable diagram for making a custom frame bag
Well-priced as an entry level bikepacking bike, but there are a few needed upgrades
Vee Flow Snap tires are horrible and dangerous
Geometry misses the ideal mark with a reach that’s a little too short
Not as compliant as the older model
Heavy build with few disappointing components; handlebar is too stiff and fork is just okay
Mar 2020 · Pat Donahue
The redesigned Marin Pine Mountain 2 is a supremely versatile bike that is comfortable in many situations. This steel bicycle was designed with a clear...
Sep 2017
It's rare for a bike under 2K catches our eye but the Marin Pine Mountain 1 has much to offer at $700 under that mark...
Dec 2016 · Alan Muldoon
The Marin Pine Mopuntain rides more like an adventure bike than a trail hardtail designed to get your pulse racing.
Steel frame absorbs vibrations
Geometry needs a refresh
Apr 2016
A new hub standard is coming and it’s going to make beginner and intermediate bikes better. Here’s what you need to know. - Mtbr.com
Feb 2016 · Tom Marvin
You'll need razor-sharp skills to get the Pine Mountain rolling at serious speeds, but it's got no shortage of simple charm. Buy if you want a refreshingly straightforward steed for savouring cross-country excursions rather than bombing trails
Appealing retro simplicity, lively character, excellent as an adventure bike
Geometry and rigid setup mean only the most skilful riders will want to cane it on the pine mountain, quick-release wheels detract from handling accuracy
| Frame | Series 3 4130 Butted and Formed CrMo, 27.5+ Wheels, Boost 148x12mm, Drop In Headset, Internal Cable Routing, 148x12mm E-Thru Axle, 73mm Threaded BB BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | Fox 34 Performance Fork, 120mm of travel, gloss black with custom decals Travel: 120mm Spring Type: Air |
| Shock | N/A Spring Type: Air |
| Bottom Bracket | Shimano Hollowtech II |
| Headset | FSA Orbit, NO.42/ACB. C-40-ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin 3D Forged Alloy, 60mm |
| Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 28mm Rise, 780mm Width, 5º Up, 9º Back |
| Saddle | WTB Volt Race |
| Seatpost | KS LEV Integra SI, Southpaw Lever, Size S 125mm Travel, All Other Sizes: 150mm Travel Type: Dropper |
| Pedals | - - - |
| Grips | Marin Single Clamp Locking |
| Rear Derailleur | Shimano Deore XT Shadow Plus 11-Speed |
|---|---|
| Front Derailleur | - - - |
| Crank | Shimano Deore XT Hollowtech II, 32T, Boost Spacing |
| Shifters | Shimano Deore XT 1x11-Speed |
| Cassette | e*thirteen TRS Plus Cassette 11spd, 9-46T |
| Chain | KMC X11L |
| Chain Guide | N/A |

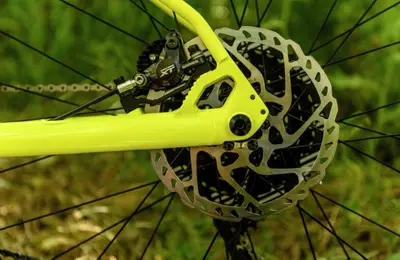

| Brakes | Shimano XT Hydraulic Disc, 180mm Rotor Type: Hydraulic Disc |
| Brake Levers | Shimano XT Hydraulic |
| Rims | WTB i40 Scraper, 40mm Inner, TCS Technology, Tubeless Compatible |
|---|---|
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Alloy, 110x15mm, Sealed Cartridge Bearings, 6-Bolt Disc 32H |
| Rear Hub | Forged Alloy, 148x12mm, Alloy Axle, Quad Sealed Cartridge Bearings, 6-Bolt Disc, 32H, XD Driver |
| Tires | WTB Ranger TCS Fast / Light, 27.5x2.8", Tubeless Compatible, Folding Bead |
