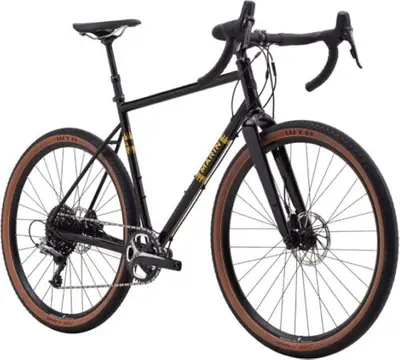

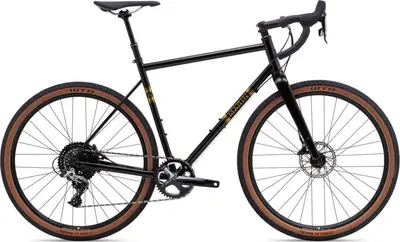

2019 Marin

Nicasio Ridge

A steel frame gravel bike with upper mid-range components and hydraulic disc brakes.
Compare the full range

MSRP$2,599
FrameSteel
SuspensionRigid
ForkCarbon
Wheels650b Aluminum
Drivetrain1 × 11
GroupsetRival, FSA
BrakesHydraulic Disc
SeatpostDropper
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
Terrain
smoothrugged
Nicasio Ridge
Other Gravel bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

38 mph

Nicasio Ridge

36 mph

Similar Bikes

Highest gear

(descending)

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Series 2 CrMo, Beyond Road Geometry, Thru- Axle, Disc Brake, Integrated Headset, Fender and Rack Mounts

BB StandardBSA, 68mm, Threaded

Fork

Marin Full Carbon w/ Taper Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Bottom Bracket

FSA BB-EVO7000, BSA Threaded

Headset

FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 3/8”

Stem

Marin 3D Forged Alloy

Handlebar

Marin Butted Alloy, Compact 12° Flared Drop

Saddle

Marin Beyond Road Concept

Seatpost

TranzX YSP11 Dropper Post, 105mm Travel

TypeDropper

Pedals

Commute Platform

Grips

Marin Shock Absorbing Perforated Tape

Groupset
Rear Derailleur

SRAM Rival 1

Front Derailleur

---

Crank

FSA Gossamer Pro, 1x11 Megatooth, 42T Chainring, BB392EVO Alloy Spindle

Shifters

SRAM Rival 1x11 Speed, Left Side ModifiedFor Dropper Post Lever

Cassette

e*thirteen TRS 11-Speed, 9-44T

Chain

KMC X11

Brakes

SRAM Rival Hydraulic

TypeHydraulic Disc

Brake Levers

SRAM Rival Hydraulic

Wheels
Rims

WTB KOM i25, 25mm Inner, Tubeless Compatible

Spokes

14g Black Stainless Steel

Front Hub

Forged Aluminum Alloy, 100x15mm, 6-Bolt Disc, 32H

Rear Hub

Forged Aluminum Alloy, 142x12mm, Alloy Axle, Quad Cartridge Sealed Bearings, SRAM XD Driver, 6-Bolt Disc, 32H

Tires

WTB Byway, 650Bx47, Folding Bead, Tubeless Compatible

Rider Notes
Riders Also Viewed

Last updated April 22
Not listed for 1,796 days
