2019 Marin

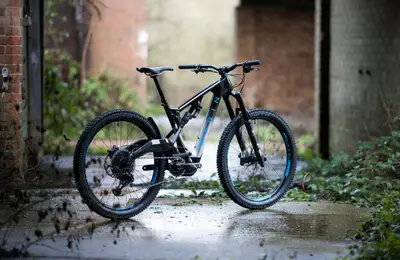

Mount Vision Pro
A 27.5″ carbon frame full suspension enduro bike with ultra high-end components.
Compare the full range
Manufacturer Price
$8,499| Frame | Carbon |
|---|---|
| Suspension | Full, 150 / 150mm |
| Fork | Fox Factory Float 36 |
| Shock | Fox Float X2 Factory |
| Wheels | 27.5″ Carbon |
| Drivetrain | 1 × 12 |
| Groupset | XTR, e*thirteen TRS Race |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
5'2" – 5'7"
5'5" – 5'11"
5'9" – 6'3"
6'1" – 6'4"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2019
The Marin Mount Vision 8 is a unique feeling bike that had me picking the most chundery lines just to see if it would hook up...
May 2019
Well, that’s different! This bike is so fresh to Australia, it’s practically still warm from the carbon moulds. We’ve been looking forward to this review for some time, and our initial 30km ride confirmed it was worth the wait. In an era when bikes are looking increasingly homogenous, the Mount Vision makes you take notice, …
A bold and exciting bike!
Very active, responsive suspension.
Ooo, it's a bit heavy.
Mar 2019
How's that crazy NAILD R3act-2Play suspension work on the 2019 Marin Mount Vision? We've got video & slow motion, plus our first impressions & ride review!
Mar 2019
Marin's new 150mm, 27.5, trail bike features unique suspension and progressive geometry
Mar 2019
Marin introduced the Mount Vision on March 4, and I can already tell it’s going to be a hot bike. There is something special about the way it feels.
Mar 2019 · Francesco Mazza
At Mountain Bike Connection Winter last week in Massa Marittima Marin, a Californian MTB brand of presented their new aggressive all mountain model – the Mount Vision. The bike is derived from their enduro model, the Wolf Ridge. It’s from that bike that it inherited the R3ACT 2Play suspension system. Matthew Cipes, Marin’s product manager, shows us the main features with a very real enthusiasm for this new model. • Unidirectional carbon fiber front triangle • Unidirectional carbon fiber rear triangle • Unidirectional carbon fiber upper link • Sealed bearings protected by special casings in their fittings • Nailed R3ACT 2Play suspension system • Different compression curve for sizes S
Mar 2019
The most unique suspension system in circulation has just appeared in an unlikely package. The Marin Mount Vision attempts to blend a play-bike chassis with hover-bike suspension. But can it be done?
| Frame | Full Unidirectional Carbon Fiber Frame, Naild R3ACT – 2 Play Suspension Technology, 27.5" Wheels, 150mm Travel, 148mm Boost Rear Spacing, Bolt On Thru-Axle BB Standard: BB86/BB92, Press Fit |
|---|---|
| Fork | Fox Factory 36 27.5", 150mm Travel, GRIP 2 Damper, High and Low Speed Compression Adjustment, Rebound Adjustment, 110x15mm Boost Spacing, 44mm Offset Travel: 150mm Spring Type: Air |
| Shock | Fox Float X2 Factory, 210x60mm, High and Low Speed Compression Adjustment, High and Low Speed Rebound Adjustment, Custom Tune, Trunnion Mount Travel: 150mm Spring Type: Air |
| Bottom Bracket | Shimano XTR PF92 |
| Headset | FSA Orbit, No. 42/47/ACB/S-4, Sealed Cartridge Bearings, 1 1/8"x 1 1/2” |
| Stem | Deity Copperhead Stem, 35mm |
| Handlebar | Deity DC31 Mohawk Carbon Bar, 787mm Width, 25mm Rise, Custom Color |
| Saddle | WTB Volt Team, Ti Rails |
| Seatpost | Fox Transfer Performance Elite, Ano Black with 1x lever, Size S 120mm Travel, All Other Sizes: 150mm Travel, 30.9mm Type: Dropper |
| Pedals | - |
| Grips | Marin Locking |
| Rear Derailleur | New Shimano XTR, RD-M9100-SGS, Long Cage, Shadow Plus Design |
|---|---|
| Front Derailleur | - |
| Crank | e*thirteen TRSr Carbon, 32T Ultralight Chainring, 170mm length |
| Shifters | New Shimano XTR, SL-M9100-IR, I-Spec EV |
| Cassette | New Shimano XTR, CS-M9100 |
| Chain | KMC 12 Speed with Quick Link |
| Brakes | New Shimano XTR Enduro M9120 Hydraulic Disc Brakes, 203mm Rotor Type: Hydraulic Disc |
| Brake Levers | New Shimano XTR BLM9120 |
| Rims | e*thirteen TRS Race, Carbon Fiber Rim, 28H, 31mm Inner, Hookless, Tubeless Compatible |
|---|---|
| Spokes | The Hive Triple-Butted, Black, J-bend |
| Front Hub | New Shimano XTR, Alloy Body, Cartridge Bearings, 110x15 E-Thru Axle, 28H |
| Rear Hub | New Shimano XTR, Alloy Body, Cartridge Bearings, 148x12 E-Thru Axle, 28H, Mircospline Freehub Body |
| Tires | Front: e*thirteen, TRS Race All-Terrain Tire, 27.5x2.35", 72tpi, Single Ply Apex Aramid Reinforced, Race Compound, Tubeless Compatible; Rear: e*thirteen, TRS PLUS All-Terrain Tire, 27.5x2.35", 72tpi, Race Compound, Tubeless Compatible |
