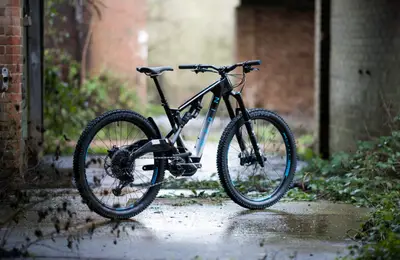

Mount Vision 8
A 27.5″ carbon frame full suspension enduro bike with high-end components.
Compare the full range
MSRP | $4,999 |
---|---|
Frame | Carbon |
Suspension | Full, 150 / 150mm |
Fork | RockShox Pike RC |
Shock | RockShox Deluxe R |
Wheels | 27.5″ Aluminum |
Drivetrain | 1 × 12 |
Groupset | GX Eagle, NX Eagle |
Brakes | Hydraulic Disc |
Seatpost | Dropper |
For This Bike
5'2" – 5'7"
5'5" – 5'11"
5'9" – 6'3"
6'1" – 6'4"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2019
The Marin Mount Vision 8 is a unique feeling bike that had me picking the most chundery lines just to see if it would hook up...
May 2019
Well, that’s different! This bike is so fresh to Australia, it’s practically still warm from the carbon moulds. We’ve been looking forward to this review for some time, and our initial 30km ride confirmed it was worth the wait. In an era when bikes are looking increasingly homogenous, the Mount Vision makes you take notice, …
A bold and exciting bike!
Very active, responsive suspension.
Ooo, it's a bit heavy.
Mar 2019
How's that crazy NAILD R3act-2Play suspension work on the 2019 Marin Mount Vision? We've got video & slow motion, plus our first impressions & ride review!
Mar 2019
Marin's new 150mm, 27.5, trail bike features unique suspension and progressive geometry
Mar 2019
Marin introduced the Mount Vision on March 4, and I can already tell it’s going to be a hot bike. There is something special about the way it feels.
Mar 2019 · Francesco Mazza
At Mountain Bike Connection Winter last week in Massa Marittima Marin, a Californian MTB brand of presented their new aggressive all mountain model – the Mount Vision. The bike is derived from their enduro model, the Wolf Ridge. It’s from that bike that it inherited the R3ACT 2Play suspension system. Matthew Cipes, Marin’s product manager, shows us the main features with a very real enthusiasm for this new model. • Unidirectional carbon fiber front triangle • Unidirectional carbon fiber rear triangle • Unidirectional carbon fiber upper link • Sealed bearings protected by special casings in their fittings • Nailed R3ACT 2Play suspension system • Different compression curve for sizes S
Mar 2019
The most unique suspension system in circulation has just appeared in an unlikely package. The Marin Mount Vision attempts to blend a play-bike chassis with hover-bike suspension. But can it be done?
Frame | Full Unidirectional Carbon Fiber Frame, Naild R3ACT – 2 Play Suspension Technology, 27.5" Wheels, 150mm Travel, 148mm Boost Rear Spacing, Bolt On Thru-Axle BB Standard: BB86/BB92, Press Fit |
---|---|
Fork | RockShox Pike RC 27.5”, 150mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 46mm Offset Travel: 150mm Spring Type: Air |
Shock | RockShox Deluxe R, 210x60mm, Rebound Adjustment, Custom Tune, Trunnion Mount Travel: 150mm Spring Type: Air |
Bottom Bracket | SRAM GXP BB92 |
Headset | FSA Orbit, No. 42/47/ACB/S-4, Sealed Cartridge Bearings, 1 1/8"x 1 1/2” |
Stem | Marin 3D Forged Alloy, 35mm |
Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 25mm Rise, 780mm Width, 5º Up, 9º Back |
Saddle | WTB Volt Race |
Seatpost | KS LEV Integra Dropper Post, Southpaw Lever, Size S 120mm Travel, All Other Sizes: 150mm Travel, 30.9mm Type: Dropper |
Pedals | - |
Grips | Marin Locking |
Rear Derailleur | SRAM GX Eagle 12-Speed |
---|---|
Front Derailleur | - |
Crank | SRAM Descendant 6K Aluminum, Direct Mount 12-Speed 32T, Boost Spacing |
Shifters | SRAM NX Eagle 12 Speed |
Cassette | SRAM XG-1275 12-Speed, 10-50T |
Chain | SRAM NX Eagle 12 Speed |
Brakes | Shimano XT MT520 4 Piston Hydraulic Disc, 203mm Rotor Type: Hydraulic Disc |
Brake Levers | Shimano MT500 |
Rims | Stan's NoTubes Sentry S1, 32mm Inner, Pinned Joint, BST Technology, Tubeless Compatible |
---|---|
Spokes | 14g Black Stainless Steel |
Front Hub | Forged Alloy, 110x15mm, 6-Bolt Disc, 32H |
Rear Hub | Forged Alloy, 148x12mm, Quad Sealed Bearings, 6-Bolt Disc, 32H |
Tires | WTB Trail Boss 27.5x2.6", Tri-Tech Triple Compound, Fast Rolling, Light Casing with Slash Guard, TCS Aramid Bead, Tubeless Compatible |
