2019 Marin

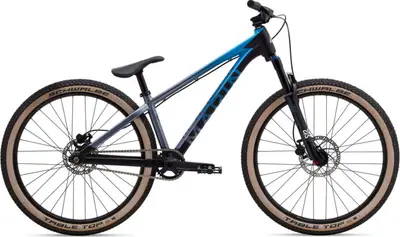

Alcatraz Frameset
A 26″ aluminum frame hardtail dirt jump frameset.
| MSRP | $1,299 |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail |
| Fork | X-Fusion SLANT |
| Wheels | 26″ |
| Drivetrain | Single-speed |
| Brakes | Hydraulic Disc |
For This Bike
3'11" +
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2017
Anyone out there have a soft spot for dirt jumpers? Marin’s latest has great lines, a killer paint job, and was designed in conjunction with one of the best slopestyle riders. - Mtbr.com
| Frame | Series 3 6061 Aluminum Frame, 26” Wheels, 135x10mm Horizontal Dropouts, Single Speed or Geared |
|---|---|
| Fork | X Fusion Slant 26 DJ, 100mm Travel, 100x15mm Thru-Axle, Air Spring, Compression and Rebound Adjust, Tapered Alloy Steerer tube, 40mm Offset Spring Type: Air |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Headset | FSA Orbit, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin 3D Forged Alloy, 40mm |
| Handlebar | Marin Riser, 6061 Double Butted Aluminum, 38mm rise, 750mm Width, 4º Up, 9º Back |
| Saddle | Marin Pivotal DJ Saddle |
| Seatpost | Marin Pivotal DJ 30.9 Diameter 200mm length Type: Rigid |
| Pedals | --- |
| Grips | Marin Single Clamp Locking |
| Rear Derailleur | --- |
|---|---|
| Front Derailleur | --- |
| Crank | Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD, STD spacing |
| Shifters | --- |
| Cassette | 14T Single Speed Cog |
| Chain | KMC HL-710 |
| Brakes | Tektro HDM275 Hydraulic, 180mm Rotor Type: Hydraulic Disc |
| Brake Levers | Tektro HDM275 |
| Spokes | 14g Black Stainless Steel |
|---|---|
| Front Hub | Forged Alloy, 100x15mm, 6-bolt Disc, 32H |
| Rear Hub | Forged Alloy, 135x10mm, Bolt On, Quad Sealed Bearings, 6-Bolt Disc, 32H |
| Tires | Vee Tire, XCV 26x2.25, LSG Compound, Wire Bead |
Last updated April 22
Not listed for 1,817 days
