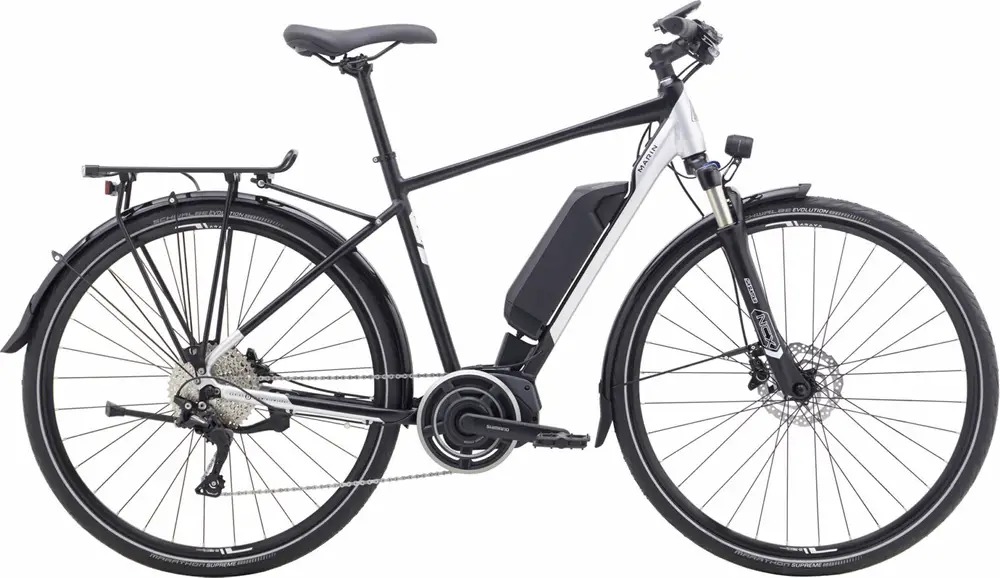

2018 Marin
San Rafael DS-E Deore
A 700c aluminum frame commuter e-bike with upper mid-range components and hydraulic disc brakes.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 63mm |
| Fork | Suntour NCX |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore, Shimano |
| Motor | Shimano 250W 50Nm mid-drive |
| Brakes | Hydraulic Disc |
For This Bike
4'11" – 5'5"
5'2" – 5'7"
5'4" – 5'10"
5'7" – 6'1"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jul 2018
Once you’re spending over a couple of grand on your e-bike you can expect a good quality experience, and that’s certainly the case here. The Marin San Rafael DS-E delivers a good ride, with a well-established motor system and quality componentry all the way through.
| Frame | Series 3 E 6061 Aluminum, 700C wheels, Post Mount Disc Specific Forged Dropouts, Fender, Rack and Integrated Kickstand Mounts BB Standard: STEPS, Press Fit |
|---|---|
| Fork | SR Suntour NCXE LOR, Remote Hydraulic Lockout, Adjustable Damping, 63mm Travel Travel: 63mm Spring Type: Air |
| Bottom Bracket | STEPS, press-fit |
| Headset | FSA Orbit CE No. 8D |
| Stem | Marin 3D Forged Alloy |
| Handlebar | Marin Flat Top Riser |
| Saddle | Marin City + Sport Plush |
| Seatpost | Marin Alloy Type: Rigid |
| Pedals | Dual Sport Platform |
| Grips | Marin Locking Ergonomic |
| Rear Derailleur | Shimano Deore 10-Speed |
|---|---|
| Crank | Shimano STEPS E6000 |
| Shifters | Shimano Deore |
| Cassette | Sunrace 10-Speed 11-42t |
| Chain | Shimano Deore |
| Brakes | Shimano BR-M365 Hydraulic Disc, 160mm Rotor Type: Hydraulic Disc |
| Brake Levers | Shimano Hydraulic |
| Rims | Marin Aluminum Double Wall, Disc Specific |
|---|---|
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Aluminum Alloy, 6-Bolt Disc, 32H |
| Rear Hub | Forged Aluminum Alloy, 6-Bolt Disc, 32H |
| Tires | Schwalbe Marathon, 700Cx38, Green Guard Puncture Protection |
| Motor | Shimano STEPS E6000, 44T Chainring |
|---|
| Lights | Supernova |
|---|---|
| Fenders | SKS Bluemels B50 |
| Racks | Racktime Stand It Shine w/ Integrated Rear Light |
