Today’s Deals2018 Marin
Nail Trail E2
A 27.5″ aluminum frame hardtail trail e-bike with high-end components.
Compare the full range
Manufacturer Price
$4,409| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 140mm |
| Fork | RockShox Revelation RC |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 8 |
| Groupset | EX1 |
| Motor | Shimano 250W 70Nm mid-drive |
| Battery | Shimano 500Wh |
| Brakes | Shimano Hydraulic Disc |
| Seatpost | Dropper |
5'4" – 5'8"
5'6" – 5'11"
5'9" – 6'1"
5'11" – 6'3"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2016 · Guy Kesteven
Smart spec choices and well-thought out geometry make for a light and fast hardtail that can cut it down heavyweight trails. Buy if you're looking for a lightweight 29er hardtail that's excellent value and can handle even heavyweight trails
Lightweight, smooth, aggro-angled hardtail frame with high volume, high control wheelset. Excellent value tough trail spec
You might want a grippier rear tyre for winter (but you’ll love the speed in summer). A smooth, high volume 29er hardtail still isn’t as impact ignorant as a full-sus bike
| Frame | Series 3 E 6061 Aluminim, 27.5+ Wheels, Post mount, Forged Drop Outs, 148x12 Thru Axle |
|---|---|

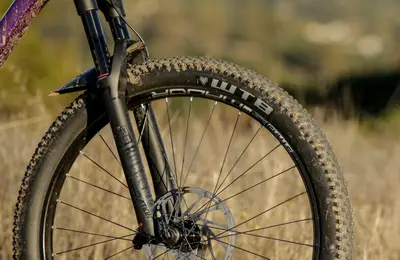

| Fork | RockShox Revelation RC 27.5+, 140mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset Travel: 140mm Spring Type: Air |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin 3D Forged Alloy, 35mm |
| Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm rise, 5º Up, 9º Back |
| Saddle | Marin Speed Concept |
| Seatpost | X-Fusion Manic, 1x Plastic Remote, Size S 120mm Travel, All Other Sizes: 150mm Travel, 30.9mm Type: Dropper |
| Pedals | Nylon Platform |
| Grips | Marin Single Clamp Locking |
| Rear Derailleur | SRAM EX1, 8 Speed |
|---|---|
| Front Derailleur | - |

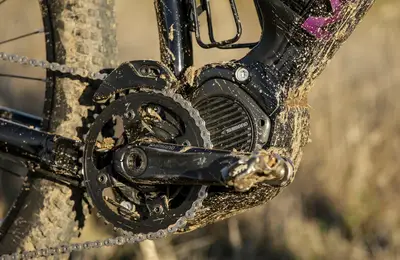

| Crank | Shimano FC-E8050, Hollowtech II, 38T, Boost Spacing |
| Shifters | SRAM EX1, 8 speed |
| Cassette | SRAM EX1, 11-48T |
| Chain | SRAM PC-EX1 |
| Brakes | Shimano MT520 4 Piston Hydraulic Disc, 203mm Rotor Type: Shimano Hydraulic Disc |
| Brake Levers | Shimano MT501 Hydraulic |
| Rims | Marin Aluminum Double Wall, 38mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
|---|---|
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Alloy, 110x15mm, 6-Bolt Disc, 32H |
| Rear Hub | Forged Alloy, 148x12mm, Quad Sealed Bearings, 6-Bolt Disc, 32H |
| Tires | Vee Tire, Crown Gem 27.5x2.8", Dual Control Compound, Synthesis Sidewall, Folding Bead, Tubeless Compatible |
| Motor | Shimano STEPS E8000 |
|---|---|
| Battery | Shimano E8010, 500Wh |
