2018 Marin

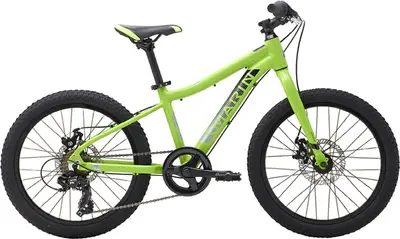

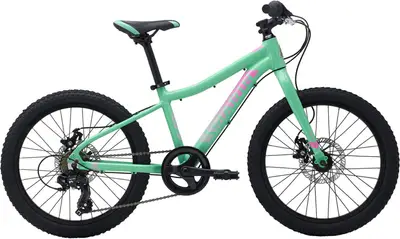

Hidden Canyon 20" Disc
A 20″ aluminum frame general youth bike with mid-range components and mechanical disc brakes.
| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 20″ Aluminum |
| Drivetrain | 1 × 7 |
| Groupset | Tourney, Shimano |
| Brakes | Mechanical Disc |
For This Bike
| Frame | Series 1 6061 Aluminum, 20” Wheels, IS Seatstay Disc Mounts, 135mm Dropouts |
|---|---|
| Fork | Steel Rigid Fork, 100mm Spacing, QR Lever |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Headset | FSA, Threaded |
| Stem | Marin Alloy, 60mm |
| Handlebar | Marin Riser, 30mm Rise, 590mm Width |
| Saddle | Marin Kids MTB |
| Seatpost | Marin Alloy Type: Rigid |
| Pedals | Kids Specific Nylon Pedal |
| Grips | Marin Dual Density |
| Rear Derailleur | Shimano Tourney, 7-Speed |
|---|---|
| Front Derailleur | - - - |
| Crank | Forged Alloy, 36T, 140mm, Ring Guard |
| Shifters | Shimano Revo Twist 1x7-Speed |
| Cassette | Shimano HG20, 12-28T |
| Chain | KMC Z50 |
| Brakes | Tektro MD280 Mechanical Disc, 160mm Rotor Type: Mechanical Disc |
| Brake Levers | Kids Specific Short Reach Alloy Lever |
| Rims | Marin, Double Wall Alloy |
|---|---|
| Spokes | 14g Stainless Steel |
| Front Hub | Formula, 32H |
| Rear Hub | Formula, 32H |
| Tires | Multisurface, 20” x 2.125” |
Last updated April 23
Not listed for 1,831 days
