Today’s Deals2015 Marin

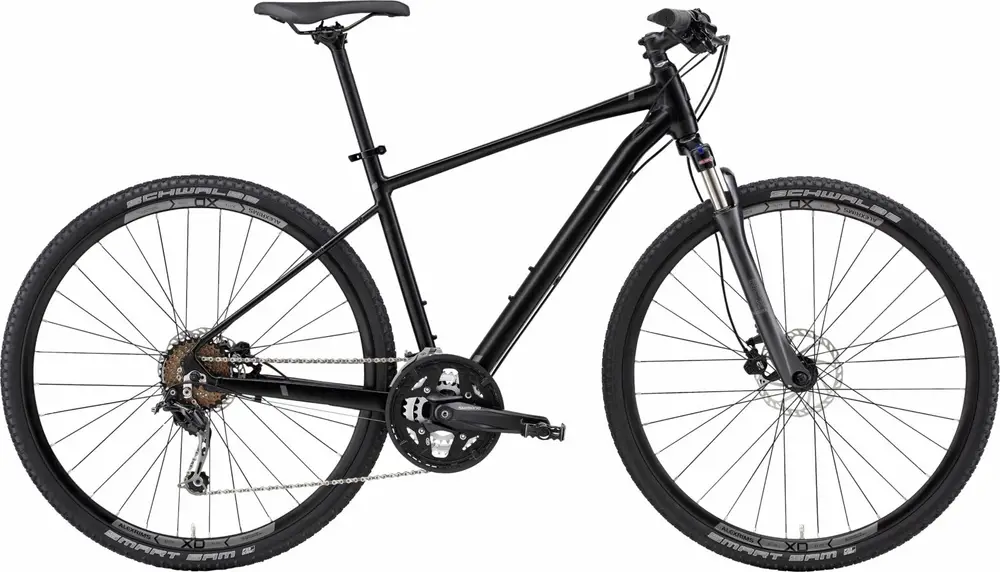

San Rafael DS4
A 700c aluminum frame commuter bike with mid-range components and tektro gemini hydraulic disc brakes.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 63mm |
| Fork | Suntour NCX |
| Wheels | 700c Aluminum |
| Drivetrain | 3 × 9 |
| Groupset | Deore, Alivio |
| Brakes | Tektro Gemini Hydraulic Disc |
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Series Three 6061 Aluminum, 700c Wheels, Relieved Head Tube and BB, Internal Cable Routing, Post Mount Disc Specific Forged Dropouts |
|---|---|
| Fork | SR Suntour NCXD LO, 63mm with Hydraulic Lockout and Adjustable Damping Travel: 63mm |
| Bottom Bracket | Shimano Octalink Splined |
| Headset | FSA No.10, 1 1/8” |
| Stem | Marin Forged OS Alloy Threadless, 31.8mm Bar Clamp |
| Handlebar | Double Butted Flat Top, 6061 Alloy, OS-31.8mm, 720mm Wide |
| Saddle | Marin Fitness |
| Seatpost | Marin Alloy Micro Adjust, 350mm Type: Rigid |
| Pedals | Full Alloy Sport Flat |
| Grips | Marin Ergonomic Locking |
| Rear Derailleur | Shimano Deore Shadow |
|---|---|
| Front Derailleur | Shimano Alivio |
| Crank | Shimano Alivio 48/36/26 |
| Shifters | Shimano Acera Rapid Fire Plus, 9-Speed |
| Cassette | Shimano Alivio HG300, 12-36, 9-Speed |
| Chain | KMC X9, 9-Speed |
| Brakes | Tektro Gemini Hydraulic Disc, 6” Rotor Type: Tektro Gemini Hydraulic Disc |
| Brake Levers | Tektro Gemini |
| Rims | Alex XD-Elite 29-Inch, Double Wall |
|---|---|
| Front Hub | Formula, 32 Hole |
| Rear Hub | Formula, 32 Hole, 6-Bolt Disc with Cassette Freehub Body |
| Tires | Schwable Smart Sam Performance 700 x 40c |
First added April 23
Last updated April 23
Not listed for 2,583 days
