Shimano M4100 4 (front) / 2 (rear) pistons

Shimano SMRT30 203mm (Front) / RTEM300 with Magnet 203mm Center Lock (Rear)

Lapierre Overvolt ISIS 165mm (S/M) / 170mm (L/XL) + FSA Megatooth Chainring 38T

"RockShox 35 Silver TK Air boost 15x110mm 29'' 120mm travel (e-MtB decals) Fender compatible"

New Overvolt HT Mix Integrated Bosch Supreme 5 alloy UDH Dropout + Kickstand & Fenders Ready

Lapierre alloy 6061DB, Width: 680mm, Rise: 15mm, Backsweep : 25°, Ø: 31.8mm

FSA NO.55R/57E, Black Anodized, 1-1/8"-1.5"

Bosch Performance line CX Smart System "25kph" / Intube battery 750Wh / KIOX

Lapierre eAM+ 32H, 584x30C, Tubeless Ready

Lapierre Suspended dropper, Ø: 31.6mm, travel 100mm (S/M), 120mm (L/XL), Suspension : 40mm + Shimano lever

Lapierre, 17°, Ø: 31.8mm, Length : 90mm

Schwalbe Johnny Watts 65-584, DD, Raceguard, 67TPI (27,5") (Front & Rear)

The E-Explorer is an electric assist bike designed for daily use. Thanks to its versatile and its progressive assistance, moving around has never been so simple. Fitted with mudguards and luggage rack, the E-Explorer makes your journey better. The completely integrated battery and the refreshed design will make you forget that this is an electric assist bike.

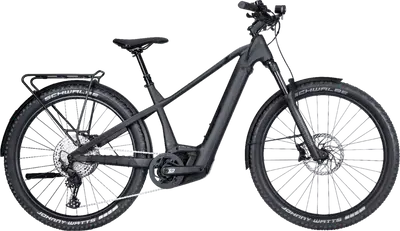

Lapierre e-Explorer 9.7

A 650b aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 120mm
Fork	RockShox 35 Silver
Wheels	650b Aluminum
Drivetrain	1 × 11
Groupset	Deore
Motor	Bosch 600W 85Nm mid-drive
Battery	750Wh
Brakes	Shimano Hydraulic Disc
Seatpost	Dropper

Frame	New Overvolt HT Mix Integrated Bosch Supreme 5 alloy UDH Dropout + Kickstand & Fenders Ready BB Standard: Bosch, Press Fit Hanger Standard: UDH

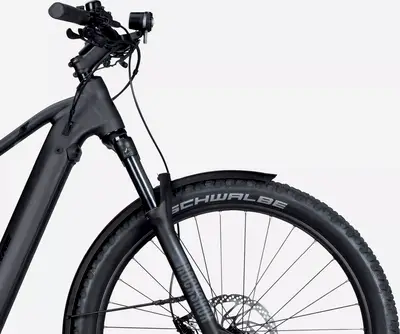

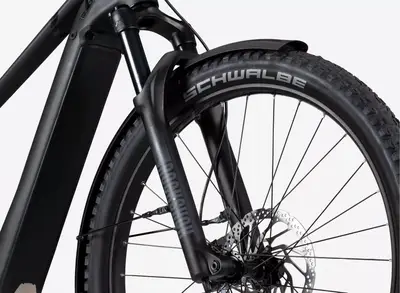

Fork	"RockShox 35 Silver TK Air boost 15x110mm 29'' 120mm travel (e-MtB decals) Fender compatible" Travel: 120mm Spring Type: Air
Bottom Bracket	Bosch, press-fit
Headset	FSA NO.55R/57E, Black Anodized, 1-1/8"-1.5"
Stem	Lapierre, 17°, Ø: 31.8mm, Length : 90mm
Handlebar	Lapierre alloy 6061DB, Width: 680mm, Rise: 15mm, Backsweep : 25°, Ø: 31.8mm
Saddle	Selle Royal Vivo Ergo Reflective
Seatpost	Lapierre Suspended dropper, Ø: 31.6mm, travel 100mm (S/M), 120mm (L/XL), Suspension : 40mm + Shimano lever Type: Dropper
Pedals	VP VPE-527
Grips	XLC Ergonomic grips

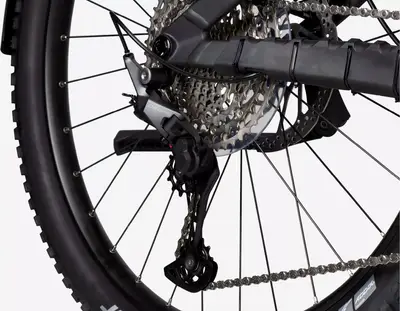

Rear Derailleur	Shimano Deore RD-M5100, 11s Shadow +
Crank	Lapierre Overvolt ISIS 165mm (S/M) / 170mm (L/XL) + FSA Megatooth Chainring 38T
Shifters	Shimano Deore SL-M5100 11s
Cassette	Shimano Deore CS-M5100 11-51T 11s
Chain	KMC E11 Turbo 11s
Brakes	Shimano SMRT30 203mm (Front) / RTEM300 with Magnet 203mm Center Lock (Rear) Type: Shimano Hydraulic Disc
Brake Levers	Shimano M4100 4 (front) / 2 (rear) pistons

Motor	Bosch Performance line CX Smart System "25kph" / Intube battery 750Wh / KIOX
Battery	750Wh
Display	Led Remote + KIOX 300

Rims	Lapierre eAM+ 32H, 584x30C, Tubeless Ready
Tires	Schwalbe Johnny Watts 65-584, DD, Raceguard, 67TPI (27,5") (Front & Rear)

2023 Lapierree-Explorer 9.7

2023 Lapierre
e-Explorer 9.7
