LAPIERRE OVERVOLT BNI, 170mm + 38T Narrow Wide

Overvolt Urban Low Step Semi Integrated Bosch

Lapierre Steel, Width: 620mm, Rise: 75mm, Backsweep : 50°, Ø: 25.4mm

FSA TH-805ST, Black Anodized, 1-1/8" Threated

Bosch Active line "25kph" / External battery 400Wh / Purion display

Ryde ZAC421 32H, 559x21C (S), 622x21C (M/L)

Lapierre Aluminium 6061 Ø: 31.6mm, Longueur : 300mm, Offset : 5mm

Shimano SL-M315 with optical gear display, 8s

Lapierre, 35°, Ø: 25.4mm, Length : 150mm

Schwalbe Impac BigPac 47-559 (S), 47-622 (M/L) (Front & Rear)

The E-Urban is an electric assist bike designed for city use. With its lowered top tube for improved access, this bike is both comfortable and dynamic. Fitted with lights, mud guards and luggage rack as standard, the E-Urban makes your trip better and safer. Thanks to its all-round characteristics and progressive assistance, getting around the city has never been easier.

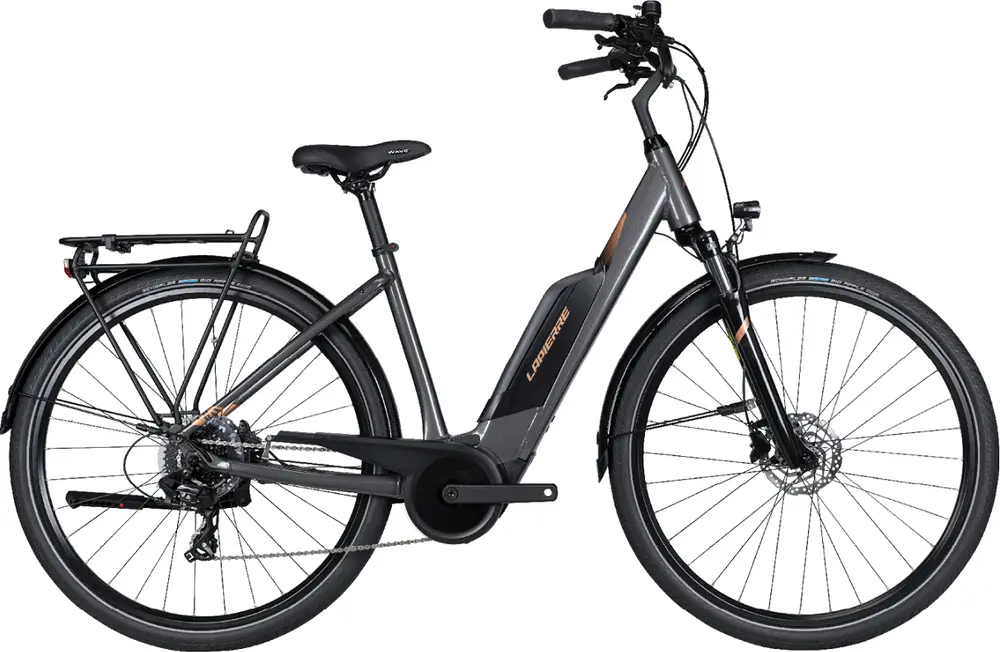

Lapierre e-Urban 3.4

A 650b aluminum frame commuter e-bike with mid-range components and shimano hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Suntour NEX
Wheels	650b Aluminum
Drivetrain	1 × 8
Groupset	Tourney
Motor	Bosch 600W 40Nm mid-drive
Battery	400Wh
Brakes	Shimano Hydraulic Disc

Frame	Overvolt Urban Low Step Semi Integrated Bosch BB Standard: Bosch, Press Fit
Fork	SR SUNTOUR NEX-E25 63mm travel Travel: 63mm Spring Type: Coil
Bottom Bracket	Bosch, press-fit
Headset	FSA TH-805ST, Black Anodized, 1-1/8" Threated
Stem	Lapierre, 35°, Ø: 25.4mm, Length : 150mm
Handlebar	Lapierre Steel, Width: 620mm, Rise: 75mm, Backsweep : 50°, Ø: 25.4mm
Saddle	Selle Royal Wave
Seatpost	Lapierre Aluminium 6061 Ø: 31.6mm, Longueur : 300mm, Offset : 5mm Type: Rigid
Pedals	VP VPE-461
Grips	XLC Ergonomic grips

Rear Derailleur	SHIMANO TOURNEY, RD-TX800, 8 vitesses
Crank	LAPIERRE OVERVOLT BNI, 170mm + 38T Narrow Wide
Shifters	Shimano SL-M315 with optical gear display, 8s
Cassette	Shimano Altus HG31 8-speed, 11-34T
Chain	KMC X8 8s
Brakes	Shimano SMRT10 160mm / 160mm Center lock Type: Shimano Hydraulic Disc
Brake Levers	Shimano MT200

Rims	Ryde ZAC421 32H, 559x21C (S), 622x21C (M/L)
Tires	Schwalbe Impac BigPac 47-559 (S), 47-622 (M/L) (Front & Rear)

2022 Lapierree-Urban 3.4

2022 Lapierre
e-Urban 3.4
