Shimano SMRT10 180mm Center Lock (Front), 160mm (Rear)

LAPIERRE OVERVOLT BNI, 170mm + 38T Narrow Wide

SR Suntour NEX E-25 Tapered QR9x100 27,5" 63mm travel

Overvolt Explorer Mix Semi Integrated Bosch

Lapierre alloy 6061DB, Width: 660mm, Rise: 26mm, Backsweep : 30°, Ø: 31.8mm

Bosch Active line "25kph" / External battery 400Wh / Purion display

Lapierre Aluminium 6061 Ø: 31.6mm, Longueur : 350mm, Offset : 5mm

Shimano Alivio SLM3100 with optical gear display, 9s

Lapierre, 17°, Ø: 31.8mm, Length : 90mm

Continental Double Fighter III 50-584, 3x60EPI (27,5") (Front & Rear)

The E-Explorer 3.4 Mix is an electric assist bike designed for daily use. The top tube has been designed to make getting on and off easier. Thanks to its versatile and its progressive assistance, moving around has never been so simple. Fitted with mudguards and luggage rack, the E-Explorer Mix makes your journey better.

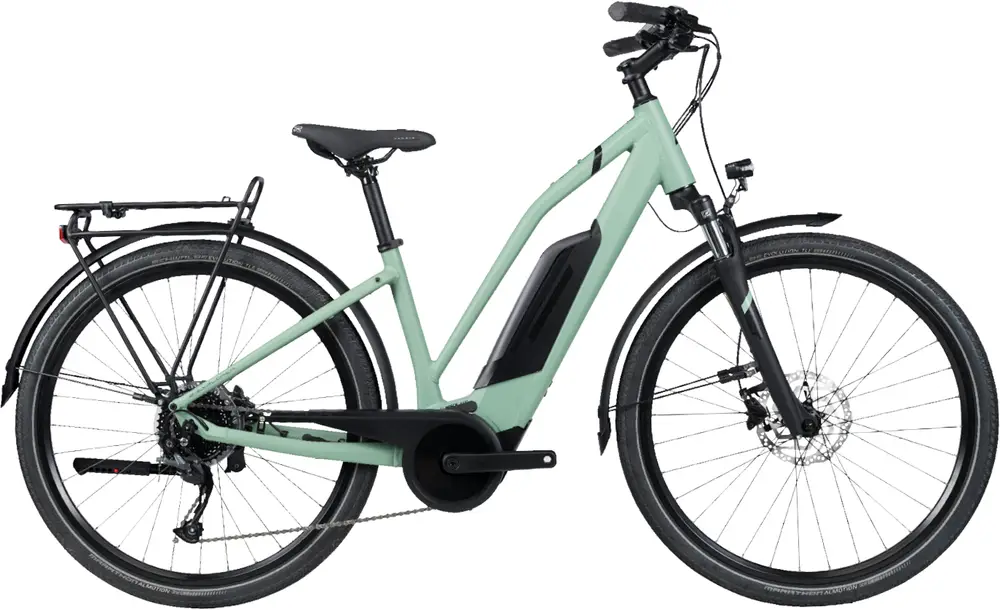

Lapierre e-Explorer 3.4 Mix

A 650b aluminum frame women’s commuter e-bike with mid-range components and shimano hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Suntour NEX
Wheels	650b Aluminum
Drivetrain	1 × 9
Groupset	Alivio, Altus
Motor	Bosch 600W 40Nm mid-drive
Battery	400Wh
Brakes	Shimano Hydraulic Disc

Frame	Overvolt Explorer Mix Semi Integrated Bosch BB Standard: Bosch, Press Fit
Fork	SR Suntour NEX E-25 Tapered QR9x100 27,5" 63mm travel Travel: 63mm Spring Type: Coil
Bottom Bracket	Bosch, press-fit
Headset	VP-J303PES, Black Finish, 1.1/8"
Stem	Lapierre, 17°, Ø: 31.8mm, Length : 90mm
Handlebar	Lapierre alloy 6061DB, Width: 660mm, Rise: 26mm, Backsweep : 30°, Ø: 31.8mm
Saddle	Selle Royal Lancia Women
Seatpost	Lapierre Aluminium 6061 Ø: 31.6mm, Longueur : 350mm, Offset : 5mm Type: Rigid
Pedals	VP VPE-461
Grips	XLC Ergonomic grips

Rear Derailleur	Shimano Altus RD-M2000, 9s Shadow
Crank	LAPIERRE OVERVOLT BNI, 170mm + 38T Narrow Wide
Shifters	Shimano Alivio SLM3100 with optical gear display, 9s
Cassette	Shimano HG200 9s 11–36T
Chain	KMC e9 Sport Silver-black 9s
Brakes	Shimano SMRT10 180mm Center Lock (Front), 160mm (Rear) Type: Shimano Hydraulic Disc
Brake Levers	Shimano MT200

Rims	Ryde ZAC421 32H, 584x21C
Tires	Continental Double Fighter III 50-584, 3x60EPI (27,5") (Front & Rear)

2022 Lapierree-Explorer 3.4 Mix

2022 Lapierre
e-Explorer 3.4 Mix
