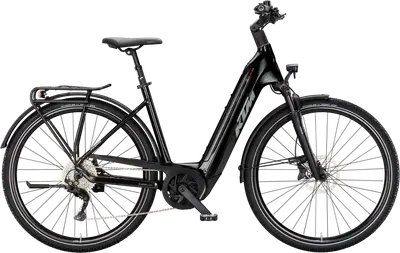

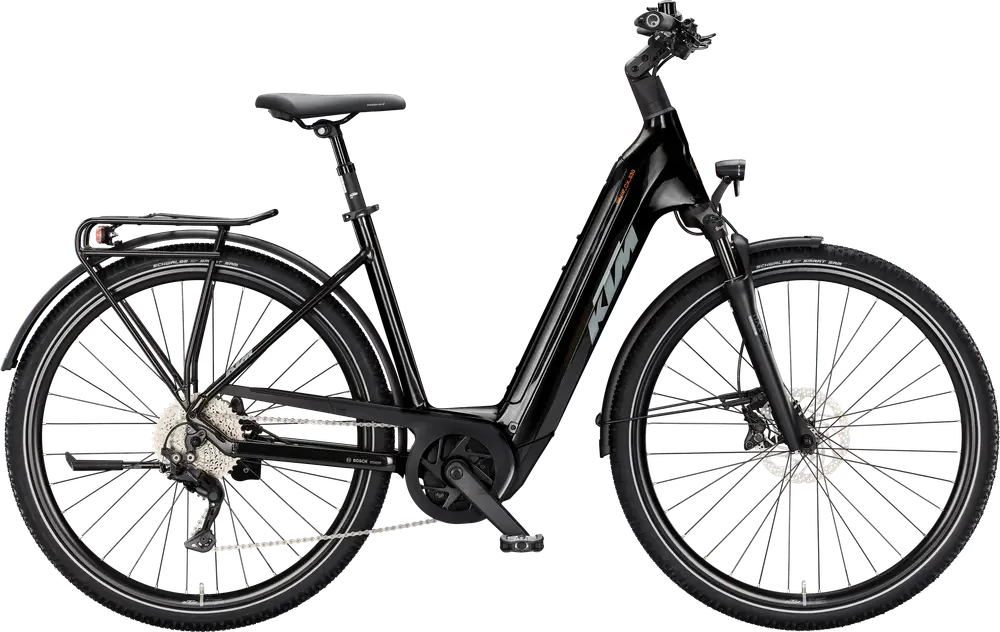

2025 KTM
MACINA TOUR CX 830

A 700c aluminum frame hybrid e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

€3,899($4,469)

Where to Buy

Similar Bikes

Top Comparison

Insights

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA TOUR model range

Specs

Build

Frame	Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38 / T-5940 BB Standard: Bosch, Press Fit
Fork	Suntour NX1 coil LO 63mm Travel: 63mm Spring Type: Coil
Bottom Bracket	Bosch, press-fit
Headset	Acros headsetcover OD62 Phyton
Stem	KTM Line adjust. 0-60° ICR
Handlebar	KTM COMP low rizer 640mm
Saddle	Selle Royal Essenza Athletic
Seatpost	KTM Line Elegance suspension 30.9/300 Type: Suspension
Pedals	Trekking-Pedal VP-616 anti-slip
Grips	Ergon GP1 SD

Groupset

Rear Derailleur	Shimano Deore M4120-10 SGS shadow
Crank	KTM E-COMP ISIS 170mm Q16
Shifters	Shimano Deore M4100-10 display
Cassette	Shimano Deore M4100-10 / 11-42
Chain	KMC e10 EPT e-bike
Chain Guide	KTM type 9 for Bosch BDU38
Brakes	Shimano MT402 (3-F) / MT420 4-Piston Type: Shimano Hydraulic Disc

Wheels

Rims	KTM Line - Shimano Deore M6000 CL 32H 100-5QR, Ryde Rival Sport 32H 622x25C, DT Champion 2.0 black \ KTM Line - Shimano Deore M6000 CL 32H 135-5QR, Ryde Rival Sport 32H 622x25C, DT Alpine II 2.34 black
Tires	Front: Schwalbe Smart Sam SBC K-Guard 47-622 Reflex, Rear: Schwalbe Smart Sam SBC K-Guard 47-622 Reflex

Electric Components

Motor	Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm
Battery	Bosch PowerTUBE 800Wh horizontal
Display	Bosch PURION 200 Display & Remote

Accessories

Fenders	SKS A55K PET Trek 28" rear
Racks	KTM light (snap-it 1.0)
