2025 KTM

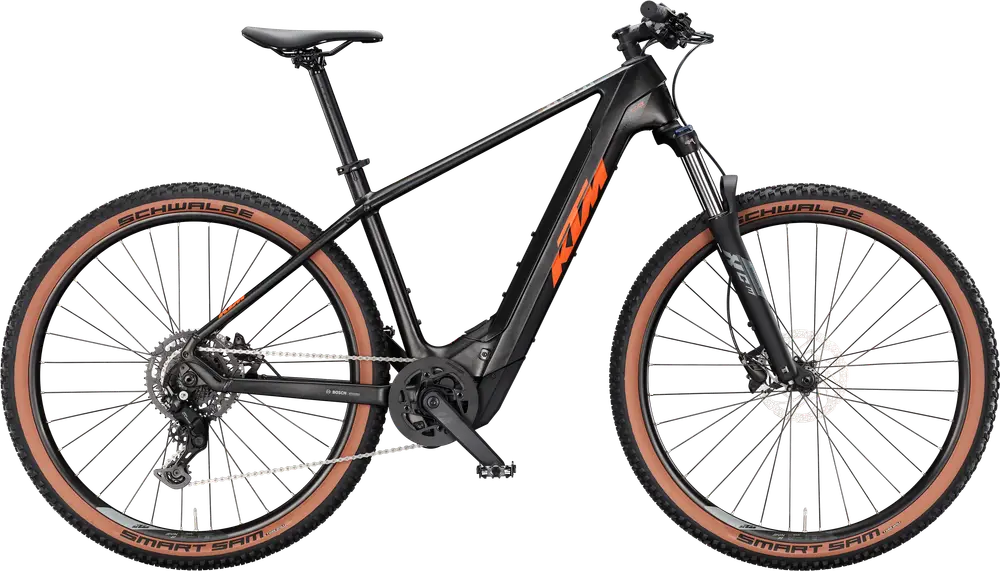

MACINA TEAM 873

A 27.5″ aluminum frame hardtail crosscountry e-bike with mid-range components.

Manufacturer Price

€3,799($4,420)
FrameAluminum
SuspensionHardtail, 100mm
ForkRockShox Recon Silver RL
Wheels27.5″ Aluminum
Drivetrain1 × 10
GroupsetCUES
MotorBosch 600W 85Nm mid-drive
BatteryBosch 800Wh
BrakesShimano Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA TEAM 873
Other Crosscountry bikes
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina MTB 27.5" Alloy 6061 UDH PT800 Bosch BDU38 / M-5710

BB Standard: Bosch, Press Fit

Hanger Standard: UDH

Fork

RockShox Recon Silver RL 27,5" 100mm 15x110 taper

Travel: 100mm

Spring Type: Air

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

KTM COMP 7°

Handlebar

KTM COMP rizer15 700mm

Saddle

KTM Line Sport

Seatpost

KTM COMP 30.9/350

Type: Rigid

Pedals

MTB-Pedal VP-195E alloy

Grips

KTM COMP Lock

Groupset
Rear Derailleur

Shimano CUES U6000-11/10 LG shadow+

Crank

KTM E-COMP2 ISIS 170mm Q8

Shifters

Shimano CUES U6000-10 display

Cassette

Shimano LG400-10 / 11-48

Chain

KMC e500 LG e-bike

Brakes

Shimano MT200 / MT200 2-Piston

Type: Shimano Hydraulic Disc

Wheels
Rims

KTM Line - Shimano TC500B CL 32H 110-15TA, Ryde Rival30 32H 584x30C, DT Champion 2.0 black \ KTM Line - Shimano TC500B CL 32H 148-12TA, Ryde Rival30 32H 584x30C, DT Alpine II 2.34 black

Tires

Front: Schwalbe Smart Sam Perf. 65-584, Rear: Schwalbe Smart Sam Perf. 65-584

Electric Components
Motor

Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm

Battery

Bosch PowerTUBE 800Wh horizontal

Display

Bosch PURION 200 Display & Remote

Rider Notes
Riders Also Viewed

First added March 25

Last updated September 27

Not listed for 248 days
