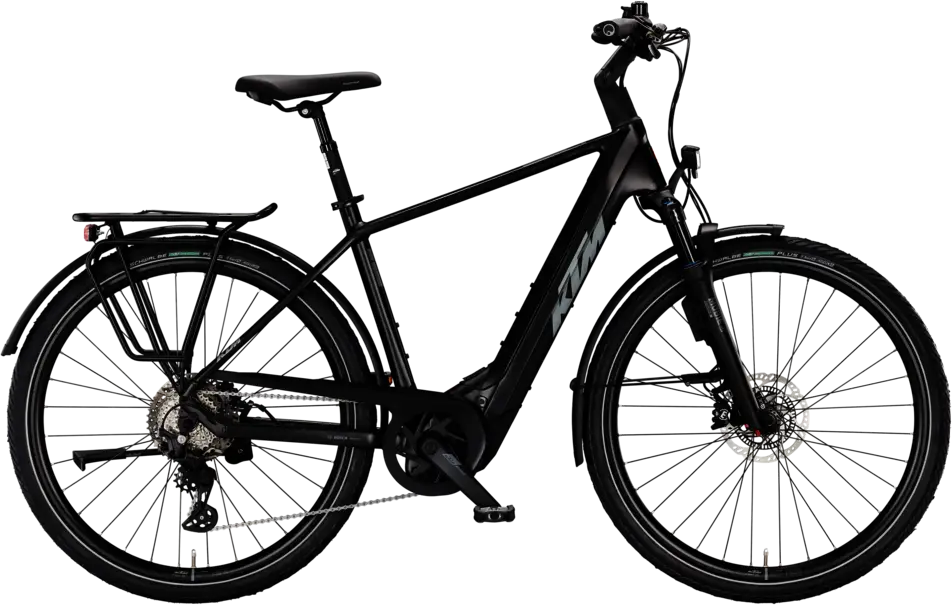

2025 KTM
MACINA STYLE 830 ABS

A 29″ aluminum frame hybrid e-bike with upper mid-range components and magura hydraulic disc brakes.

Manufacturer Price

€4,499($5,235)

Where to Buy

Similar Bikes

Top Comparison

Insights

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing

5'2" – 5'8"

5'6" – 5'11"

5'10" – 6'3"

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry

Specs

Build

Frame	Macina Trekking Onroad Alloy 6061\|PT800 Bosch BDU38/T5940 BB Standard: Bosch, Press Fit
Fork	Suntour Mobie34 Air 29" 2CR 80mm 15QLC Travel: 80mm Spring Type: Air
Bottom Bracket	Bosch, press-fit
Headset	Acros AICR internal 1.5"-1.5"
Stem	KTM Line adjust. 0-60° ICR
Handlebar	KTM Line low rizer 640mm
Saddle	Selle Royal Essenza
Seatpost	KTM Line Elegance suspension 30.9/300 Type: Suspension
Pedals	Trekking-Pedal VP-616 anti-slip
Grips	Ergon GP1 SD

Groupset

Rear Derailleur	Shimano Deore M5130-10 LG shadow+
Crank	KTM E-COMP ISIS 170mm Q16
Shifters	Shimano Deore M5130-10 LG display
Cassette	Shimano LG600-10 / 11-43
Chain	KMC e500 LG e-bike
Chain Guide	KTM type 9 for Bosch BDU38
Brakes	Magura MTC ABS 4-Piston Type: Magura Hydraulic Disc

Wheels

Rims	Ambrosio Sport 25 32H 622x25TC / Ambrosio Sport 25 32H 622x25TC
Spokes	DT Champion 2.0 black / DT Alpine II 2.34 black
Tires	Front: Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex, Rear: Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex

Electric Components

Motor	Bosch PERFORMANCE CX BDU3840
Battery	Bosch PowerTUBE 800Wh horizontal
Display	Bosch PURION 200 Display & Remote
Charger	Bosch STANDARD Charger 4A

Accessories

Fenders	SKS A55K PET Trek 28"
Racks	KTM tour snap-it 2.0/monkeyload\|childseat + rack clip

Rider Notes

Riders Also Viewed

First added March 25

Last updated January 5

Not listed for 153 days

2025 KTMMACINA STYLE 830 ABS
