2025 KTM

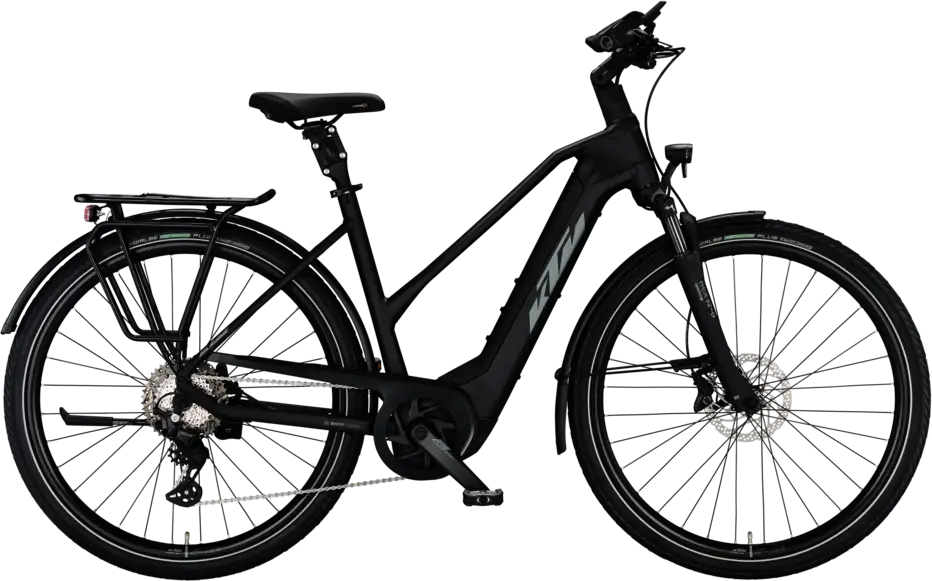

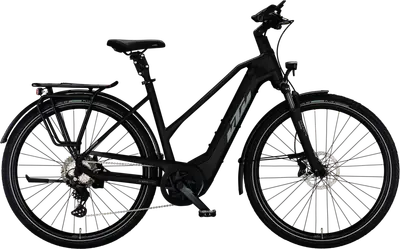

MACINA STYLE 730

A 29″ aluminum frame hybrid e-bike with upper mid-range components and shimano hydraulic disc brakes.

Manufacturer Price

€4,299($5,002)
Weight61.5 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorBosch 600W 85Nm mid-drive
BatteryBosch 750Wh
BrakesShimano Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

MACINA STYLE 730

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940

BB Standard: Bosch, Press Fit

Fork

Suntour NCX32-D coil LO 63mm

Travel: 63mm

Spring Type: Coil

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

KTM adjust. 0-60° ICR

Handlebar

KTM Line rizer20 640mm

Saddle

Selle Royal Lookin+

Seatpost

KTM COMP II parallelogramm 30.9/350

Type: Rigid

Pedals

Trekking-Pedal VP-616 anti-slip

Groupset
Rear Derailleur

Shimano Deore M5130-10 LG shadow+

Crank

KTM E-COMP ISIS 170mm Q16

Shifters

Shimano Deore M5130-10 LG display

Cassette

Shimano LG600-10 / 11-43

Chain

Shimano LG500

Chain Guide

KTM type 7 for Bosch Gen.4

Brakes

Shimano MT402 (3-F) / MT420 4-Piston

Type: Shimano Hydraulic Disc

Wheels
Rims

KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport 25 700C 32H 622x25C / DT Champion 2.0 black

Tires

Front: Schwalbe Energizer Plus Perf. GreenGuard 50-622, Rear: Schwalbe Energizer Plus Perf. GreenGuard 50-622

Disc Rotors

Shimano RT30 CL 180 / 160

Electric Components
Motor

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm

Battery

Bosch PowerTUBE 750Wh SMART SYSTEM hor.

Display

Bosch LED remote SMART SYSTEM / Bosch INTUVIA 100 LCD Display SMART SYSTEM

Charger

Bosch STANDARD Charger 4A SMART SYSTEM

Accessories
Fenders

SKS A55K 55mm black matt

Racks

KTM tour (snap-it 1.0)
