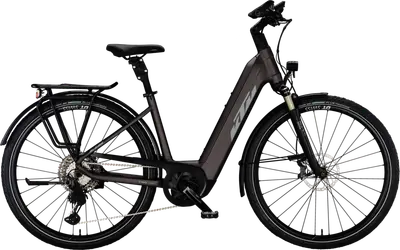

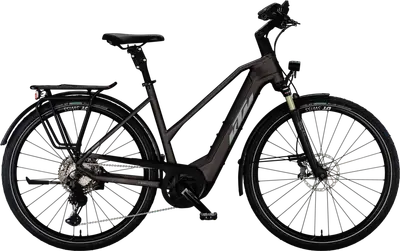

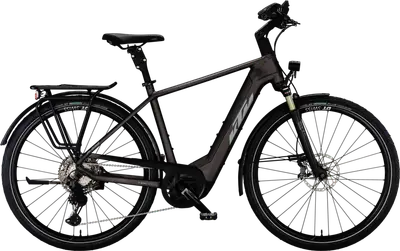

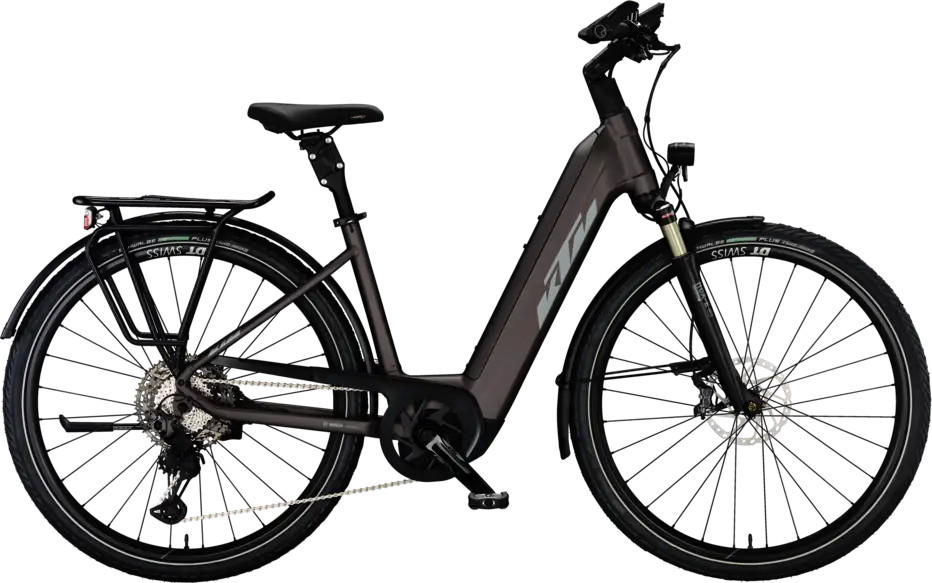

2025 KTM

MACINA STYLE 710

A 29″ aluminum frame hybrid e-bike with high-end components and shimano xt hydraulic disc brakes.

Manufacturer Price

€5,299($6,162)
Weight59.3 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NCX
Wheels29″ Aluminum
Drivetrain1 × 11
GroupsetXT
MotorBosch 600W 85Nm mid-drive
BatteryBosch 750Wh
BrakesShimano XT Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

MACINA STYLE 710

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940

BB Standard: Bosch, Press Fit

Fork

Suntour NCX-E Air LO 63mm 15QLC

Travel: 63mm

Spring Type: Air

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

KTM adjust. 0-60° ICR

Handlebar

KTM Line rizer20 640mm

Saddle

Selle Royal Lookin+

Seatpost

KTM COMP II parallelogramm 30.9/350

Type: Rigid

Pedals

Trekking-Pedal VP-616 anti-slip

Groupset
Rear Derailleur

Shimano Deore XT M8130-11 LG shadow+

Crank

KTM E-TEAM ISIS 170mm Q16

Shifters

Shimano Deore XT M8130-11 LG

Cassette

Shimano LG400-11 / 11-50

Chain

KMC e11 Sport EPT e-bike

Chain Guide

KTM type 7 for Bosch Gen.4

Brakes

Shimano Deore XT T8100 / M8120 4-Piston

Type: Shimano XT Hydraulic Disc

Wheels
Rims

DT Swiss HU 1900 CL 100/15TA / 622x25C

Tires

Front: Schwalbe Energizer Plus Perf. GreenGuard 50-622, Rear: Schwalbe Energizer Plus Perf. GreenGuard 50-622

Disc Rotors

Shimano RT64 CL 180 / 160

Electric Components
Motor

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm

Battery

Bosch PowerTUBE 750Wh SMART SYSTEM hor.

Display

Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT Display SMART SYSTEM

Charger

Bosch STANDARD Charger 4A SMART SYSTEM

Accessories
Fenders

SKS A55K 55mm black matt

Racks

CARRIER
