2025 KTM

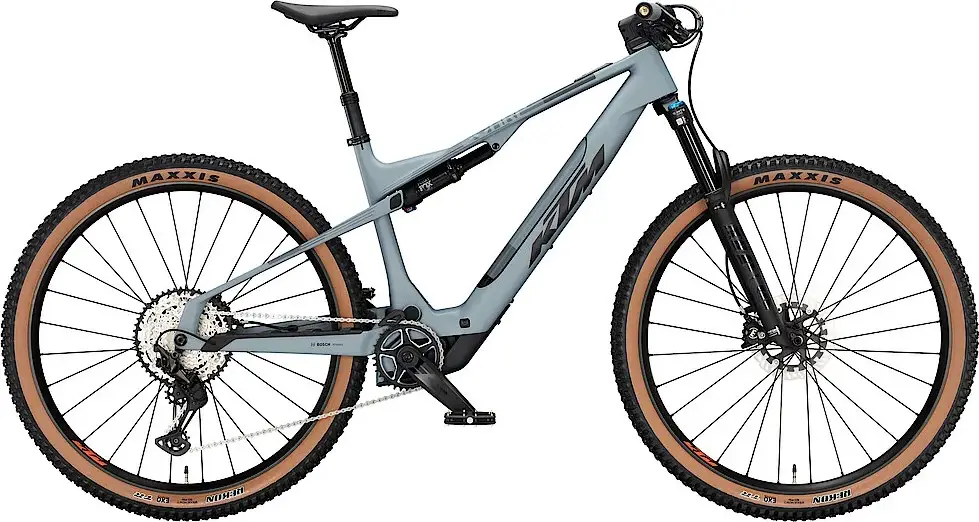

MACINA SCARP SX MASTER

A 29″ carbon frame full suspension trail e-bike with high-end components.
Compare the full range

Manufacturer Price

€6,299($7,329)
FrameCarbon
SuspensionFull, 140 / 140mm
ForkFox Performance Float 34
ShockFox Float X Performance
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXT
MotorBosch 600W 55Nm mid-drive
BatteryBosch 400Wh
BrakesMagura MT5 Hydraulic Disc
SeatpostDropper
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA SCARP SX MASTER
Other Trail bikes
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA SCARP SX model range

View Comparison
Sizing
MD

5'4" – 5'10"

LG

5'8" – 6'3"

XL

6'0" – 6'6"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina Scarp 29" Premium Carbon SLL-E 140mm UDH CPT400 Bosch BDU31 / M-4830

BB Standard: Bosch, Press Fit

Hanger Standard: UDH

Fork

FOX 34 Float 29" Performance e-Tune 140mm

Travel: 140mm

Spring Type: Air

Shock

FOX Float Performance 2-P 230x60

Travel: 140mm

Bottom Bracket

Bosch, press-fit

Headset

FSA ACR / Acros 1.5" angle limit

Stem

FSA NS MTB -10° ICR

Handlebar

KTM Team II flat 2X 740mm

Saddle

Selle Royal SRX

Seatpost

KTM Comp II dropper internal

Type: Dropper

Pedals

MTB-Pedal flat VP-539 nylon

Grips

ESI Chunky silicone

Groupset
Rear Derailleur

Shimano Deore XT M8100-12 SGS shadow+

Crank

KTM E-TEAM2 ISIS 170mm Q8

Shifters

Shimano Deore XT M8100-12

Cassette

Shimano SLX M7100-12 / 10-51T

Chain

Shimano M6100-12

Brakes

Magura MT5 4-Piston

Type: Magura MT5 Hydraulic Disc

Wheels
Rims

KTM Comp Trail 29 CL 110/15TA / 622x30TC made by DT Swiss//KTM Comp Trail 29 CL 148/12TA / 622x30TC made by DT Swiss

Tires

Front: Maxxis Rekon EXO/TR 62-622, Rear: Maxxis Rekon EXO/TR 62-622

Electric Components
Motor

Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm

Battery

Bosch PowerTUBE 400Wh SMART SYSTEM compact

Display

Bosch Mini Remote Flatbar SMART SYSTEM

Charger

Bosch STANDARD Charger 4A SMART SYSTEM
