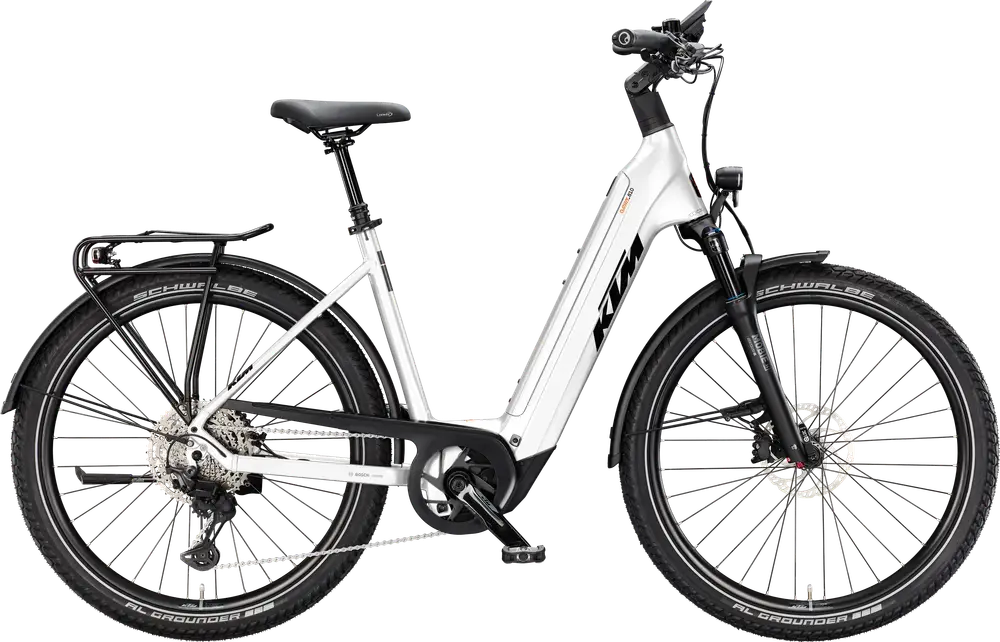

2025 KTM

MACINA GRAN 810 27

A 27.5″ aluminum frame hardtail crosscountry e-bike with high-end components.
Compare the full range

Manufacturer Price

€4,499($5,211)
FrameAluminum
SuspensionHardtail, 80mm
ForkSuntour MOBIE
Wheels27.5″ Aluminum
Drivetrain1 × 11
GroupsetXT
MotorBosch 600W 85Nm mid-drive
BatteryBosch 800Wh
BrakesShimano Hydraulic Disc
SeatpostDropper
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA GRAN 810 27
Other Crosscountry bikes
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA GRAN model range

View Comparison
Sizing
XS

4'11" – 5'5"

SM

5'2" – 5'7"

MD

5'4" – 5'10"

LG

5'7" – 6'1"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38 / T-5940

BB Standard: Bosch, Press Fit

Fork

Suntour Mobie34 Air 27,5" 2CR 80mm 15QLC taper

Travel: 80mm

Spring Type: Air

Bottom Bracket

Bosch, press-fit

Headset

Acros headsetcover OD62 Phyton

Stem

KTM adjust. 0-60° ICR

Handlebar

Ergotec Lady Town 630mm

Saddle

Selle Royal Lookin 3D

Seatpost

KTM Line dropper + suspension 30.9 T:80

Type: Dropper

Pedals

Trekking-Pedal VP-616 anti-slip

Grips

Ergon GP1 SD

Groupset
Rear Derailleur

Shimano Deore XT M8130-11 LG shadow+

Crank

KTM E-TEAM ISIS 170mm Q16

Shifters

Shimano Deore XT M8130-11 LG

Cassette

Shimano LG400-11 / 11-50

Chain

KMC e11 Sport EPT e-bike

Chain Guide

KTM type 9 for Bosch BDU38

Brakes

Shimano MT402 (3-F) / MT420 4-Piston

Type: Shimano Hydraulic Disc

Wheels
Rims

KTM Line - Shimano Deore M6010 CL 32H 100-15TA, Ryde Rival30 32H 584x30C, DT Champion 2.0 black \ KTM Line - Shimano Deore M5100 CL 32H 135-5QR, Ryde Rival30 32H 584x30C, DT Alpine II 2.34 black

Tires

Front: Schwalbe Al Grounder Perf. 60-584 RT Addix, Rear: Schwalbe Al Grounder Perf. 60-584 RT Addix

Electric Components
Motor

Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm

Battery

Bosch PowerTUBE 800Wh horizontal

Display

Bosch LED remote / Bosch KIOX 500 TFT Display

Accessories
Fenders

SKS A69R PET Trek 28" rear

Racks

KTM light (snap-it 1.0)

Rider Notes
Riders Also Viewed

First added March 25

Last updated September 27

Not listed for 259 days
