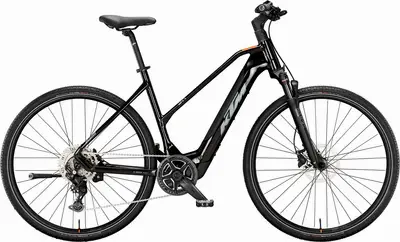

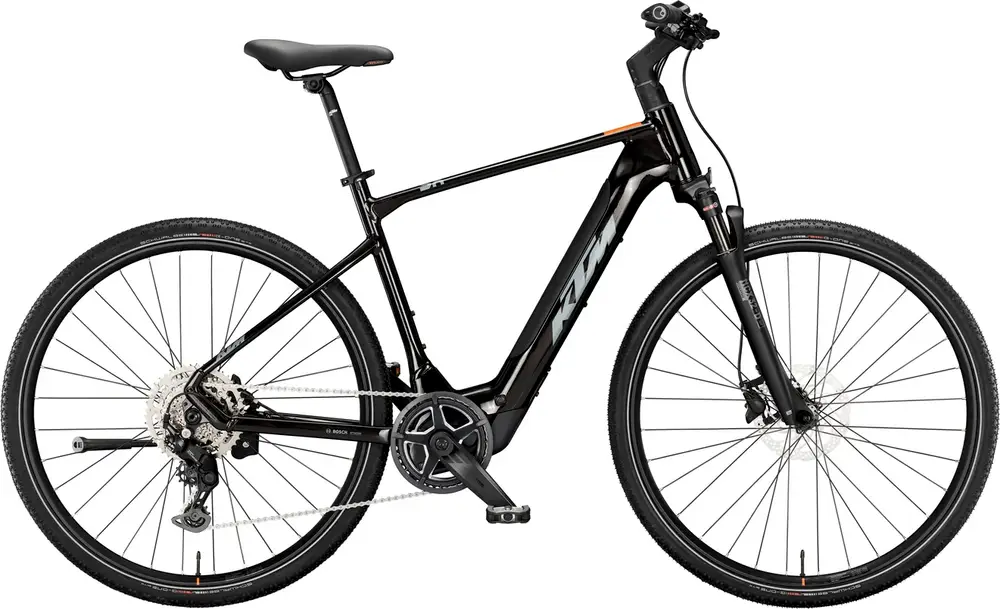

2025 KTM
MACINA CROSS SX 20

A 700c aluminum frame hybrid e-bike with mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

€3,299($3,781)

Where to Buy

Similar Bikes

Top Comparison

Insights

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA CROSS model range

Sizing

5'2" – 5'8"

5'6" – 5'11"

5'10" – 6'3"

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry

Specs

Build

Frame	Macina Trekking Offroad Alloy 6061 CPT400Wh Bosch BDU31 / T-4110 BB Standard: Bosch, Press Fit
Fork	Suntour NCX32-D Air LO 63mm Travel: 63mm Spring Type: Air
Bottom Bracket	Bosch, press-fit
Headset	Acros ICR 1.5" angle limit
Stem	KTM +20° ICR
Handlebar	KTM Comp II low rizer 640mm
Saddle	Selle Royal Explora Gel
Seatpost	KTM Line 27.2/350 Type: Rigid
Pedals	Trekking-Pedal VP-616 anti-slip
Grips	Ergon GP1 SD

Groupset

Rear Derailleur	Shimano CUES U4000-9 shadow
Crank	KTM E-TEAM2 ISIS 170mm Q8
Shifters	Shimano CUES U4000-9 display
Cassette	Shimano LG400-9 / 11-46T
Chain	KMC e500 LG e-bike
Brakes	Shimano MT201 / MT200 2-Piston Type: Shimano Hydraulic Disc

Wheels

Rims	KTM Line - Shimano Deore M6000 CL 32H 100-5QR, Black Jack Ready25 32H 622x25TC, DT Champion 2.0 black//KTM Line - Shimano CUES TC500 CL 32H 142-12TA, Black Jack Ready25 32H 622x25TC, DT Alpine II 2.34 black
Tires	Front: Schwalbe G-One Bite Evo TLE 45-622, Rear: Schwalbe G-One Bite Evo TLE 45-622

Electric Components

Motor	Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm
Battery	Bosch PowerTUBE 400Wh SMART SYSTEM compact
Display	Bosch PURION 200 Display & Remote SMART SYSTEM
Charger	Bosch Compact Charger 2A SMART SYSTEM
