Today’s Deals2025 KTM

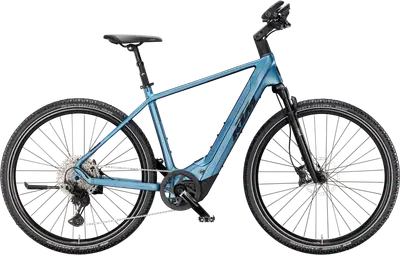

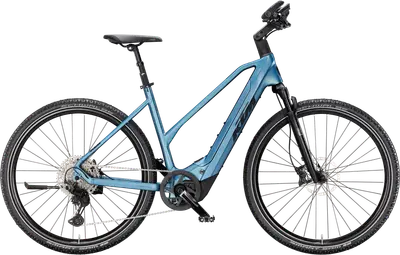

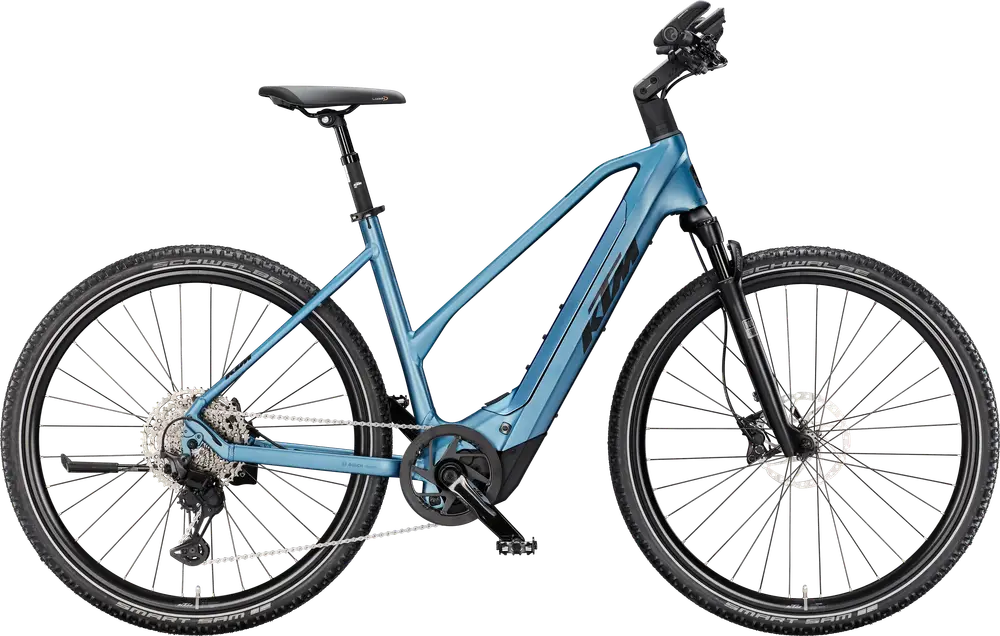

MACINA CROSS CX 810
A 700c aluminum frame hybrid e-bike with high-end components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€4,299($5,002)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 65mm |
| Fork | RockShox Paragon Gold RL |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | XT |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 800Wh |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full MACINA CROSS model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38 / T-5940 BB Standard: Bosch, Press Fit |
|---|---|
| Fork | RockShox Paragon Gold RL Air 65mm taper Travel: 65mm Spring Type: Air |
| Bottom Bracket | Bosch, press-fit |
| Headset | Acros headsetcover OD62 Phyton |
| Stem | KTM Line adjust. 0-60° ICR |
| Handlebar | KTM TEAM low rizer 640mm |
| Saddle | Selle Royal Lookin Athletic 3D |
| Seatpost | KTM Line Elegance suspension 30.9/300 Type: Suspension |
| Pedals | MTB-Pedal VP-195E alloy |
| Grips | Ergon GP30 |
| Rear Derailleur | Shimano Deore XT M8130-11 LG shadow+ |
|---|---|
| Crank | KTM E-TEAM ISIS 170mm Q16 |
| Shifters | Shimano Deore XT M8130-11 LG |
| Cassette | Shimano LG400-11 / 11-50 |
| Chain | KMC e11 Sport EPT e-bike |
| Brakes | Shimano MT402 (3-F) / MT420 4-Piston Type: Shimano Hydraulic Disc |
| Rims | KTM Line - Shimano Deore M6000 CL 32H 100-5QR, Ryde Rival Sport 32H 622x25C, DT Champion 2.0 black \ KTM Line - Shimano Deore M5100 CL 32H 135-5QR, Ryde Rival Sport 32H 622x25C, DT Alpine II 2.34 black |
|---|---|
| Tires | Front: Schwalbe Smart Sam Perf. 47-622 Reflex, Rear: Schwalbe Smart Sam Perf. 47-622 Reflex |
| Motor | Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm |
|---|---|
| Battery | Bosch PowerTUBE 800Wh horizontal |
| Display | Bosch LED remote / Bosch KIOX 300 TFT Display |
