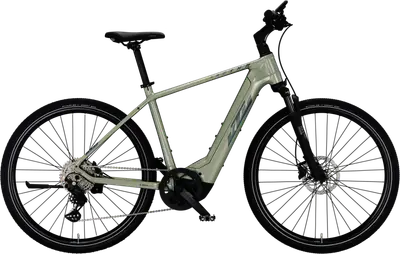

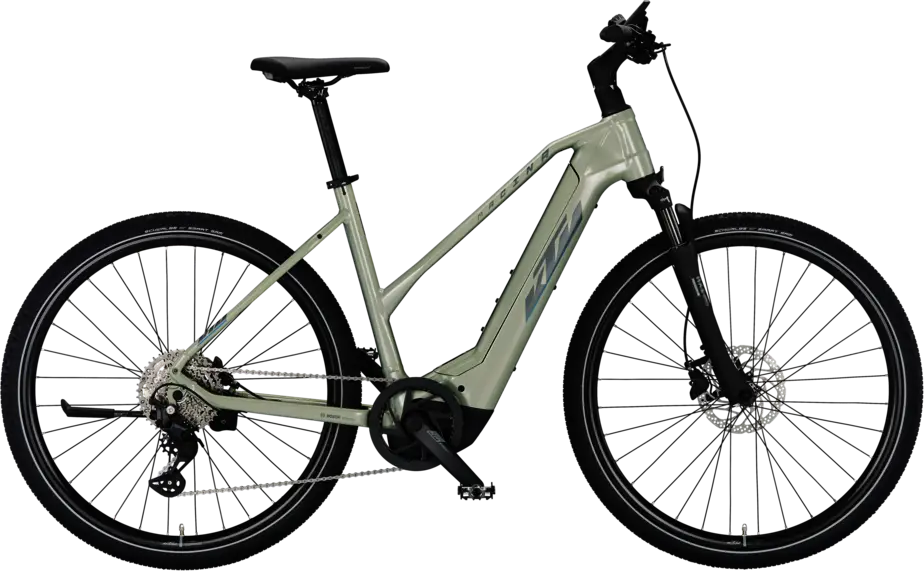

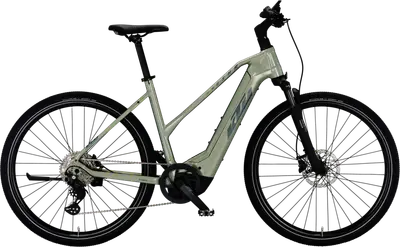

2025 KTM

MACINA CROSS 720

A 700c aluminum frame hybrid e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

€3,999($4,653)
Weight53.4 lbs
FrameAluminum
SuspensionHardtail, 63mm
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorBosch 600W 85Nm mid-drive
BatteryBosch 750Wh
BrakesShimano Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

MACINA CROSS 720

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA CROSS model range

View Comparison
Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina Trekking Offroad Alloy6061; PT750Wh Bosch Gen.4 / T-2930

BB Standard: Bosch, Press Fit

Fork

Suntour NX1 coil LO 63mm

Travel: 63mm

Spring Type: Coil

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

KTM +20° ICR

Handlebar

KTM COMP II low rizer 640mm

Saddle

Selle Royal Essenza Athletic

Seatpost

KTM COMP II 30.9/350

Type: Rigid

Pedals

MTB-Pedal VP-195E alloy

Groupset
Rear Derailleur

Shimano Deore M5130-10 LG shadow+

Crank

KTM E-COMP ISIS 170mm Q16

Shifters

Shimano Deore M5130-10 LG display

Cassette

Shimano LG400-10 / 11-43

Chain

Shimano LG500

Brakes

Shimano MT200 / MT200 2-Piston

Type: Shimano Hydraulic Disc

Wheels
Rims

KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival Sport 32H 622x25C / DT Champion 2.0 black

Tires

Front: Schwalbe Smart Sam 47-622 RT, Rear: Schwalbe Smart Sam 47-622 RT

Disc Rotors

Shimano RT30 CL 180 / 160

Electric Components
Motor

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm

Battery

Bosch PowerTUBE 750Wh SMART SYSTEM hor.

Display

Bosch LED remote SMART SYSTEM / Bosch INTUVIA 100 LCD Display SMART SYSTEM

Charger

Bosch STANDARD Charger 4A SMART SYSTEM
