2024 KTM

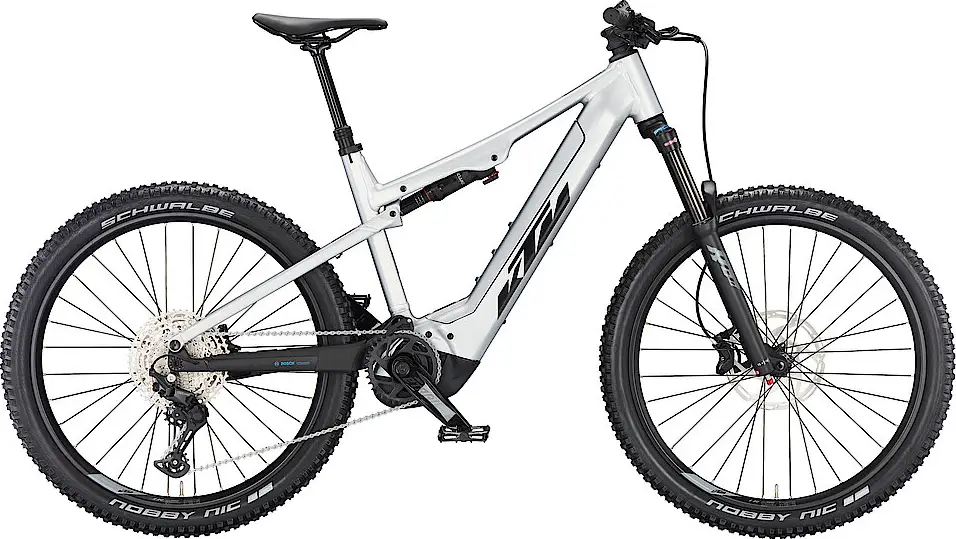

MACINA LYCAN 772

A 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

€5,299($6,165)
Weight58.6 lbs
FrameAluminum
SuspensionFull, 140 / 140mm
ForkSuntour XCR Air
ShockRockShox Deluxe Select+
Wheels27.5″ Aluminum
Drivetrain1 × 11
GroupsetDeore
MotorBosch 600W 85Nm mid-drive
BatteryBosch 750Wh
BrakesTektro Orion Hydraulic Disc
SeatpostDropper
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA LYCAN 772
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

MACINA LYCAN 772

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA LYCAN model range

View Comparison
Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina Lycan 27.5" Alloy6061 SLL-E 140mm; PT750 Bosch Gen.4 / M-2296

BB Standard: Bosch, Press Fit

Fork

Suntour XCR 34 Air 27.5" LOR 140mm 15x110 taper

Travel: 140mm

Spring Type: Air

Shock

RockShox Deluxe Select+ 230x62.5

Travel: 140mm

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

KTM TEAM II Trail35

Handlebar

KTM COMP II Trail35 rizer15 760mm

Saddle

KTM Line Sport

Seatpost

KTM COMP II dropper internal

Type: Dropper

Pedals

MTB-Pedal flat VPE-527 alloy

Groupset
Rear Derailleur

Shimano Deore M5100-11 SGS shadow+

Crank

KTM E-TRAIL ISIS 170mm Q16

Shifters

Shimano Deore M5100-11

Cassette

Shimano Deore M5100-11 / 11-51

Chain

KMC e11 Sport EPT e-bike

Brakes

Tektro HD-M750 / E730 4-Piston

Type: Tektro Orion Hydraulic Disc

Wheels
Rims

KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black

Disc Rotors

Tektro TR-45 2.3mm CL 203 / 180

Electric Components
Motor

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm

Battery

Bosch PowerTUBE 750Wh SMART SYSTEM hor.

Display

Bosch LED remote SMART SYSTEM

Charger

Bosch STANDARD Charger 4A SMART SYSTEM
