2023 KTM

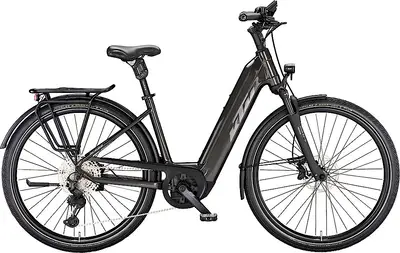

MACINA STYLE XL

A 700c aluminum frame hybrid e-bike with high-end components and tektro dorado hydraulic disc brakes.
Compare the full range

Weight63.5 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour
Wheels700c Aluminum
Drivetrain1 × 11
GroupsetXT
MotorBosch 600W 85Nm mid-drive
BatteryBosch 750Wh
BrakesTektro Dorado Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

MACINA STYLE XL

35 mph

Similar Bikes

Highest gear

(descending)

Geometry
Specs
Build
Frame

Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940

BB Standard: Bosch, Press Fit

Color: Machine Grey (Silver+black)

Fork

Suntour NCX32-D coil LO 63mm (Heay Duty)

Travel: 63mm

Spring Type: Coil

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

Ergotec Swell RE70 adjust.

Handlebar

Ergotec Lady Town GH16 630mm

Saddle

Selle Royal Viaggio HRC

Seatpost

bySchulz G.2 ST suspension 30.9/350

Type: Suspension

Pedals

Trekking-Pedal VP-616 anti-slip

Groupset
Rear Derailleur

Shimano Deore XT M8130-11 LG shadow+

Crank

KTM E-COMP ISIS 170mm Q16

Shifters

Shimano Deore XT M8130-11 LG

Cassette

Shimano LG400-11 / 11-50

Chain

KMC e11 Sport EPT e-bike

Chain Guide

KTM type 7 for Bosch Gen.4

Brakes

Tektro TKD-139 / HD-E730 4-Piston

Type: Tektro Dorado Hydraulic Disc

Wheels
Rims

KTM Line - Shimano Deore M6000 CL 36H 100-5QR / Ryde Andra29 36H 622x29C / DT Alpine II 2.34 black

Disc Rotors

Tektro TR-45 2.3mm CL 180 / 180

Electric Components
Motor

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm

Battery

Bosch PowerTUBE 750Wh SMART SYSTEM hor.

Display

Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT Display SMART SYSTEM

Charger

Bosch STANDARD Charger 4A SMART SYSTEM

Accessories
Fenders

SKS A55K 55mm black matt

Racks

KTM tour (snap-it 1.0)
