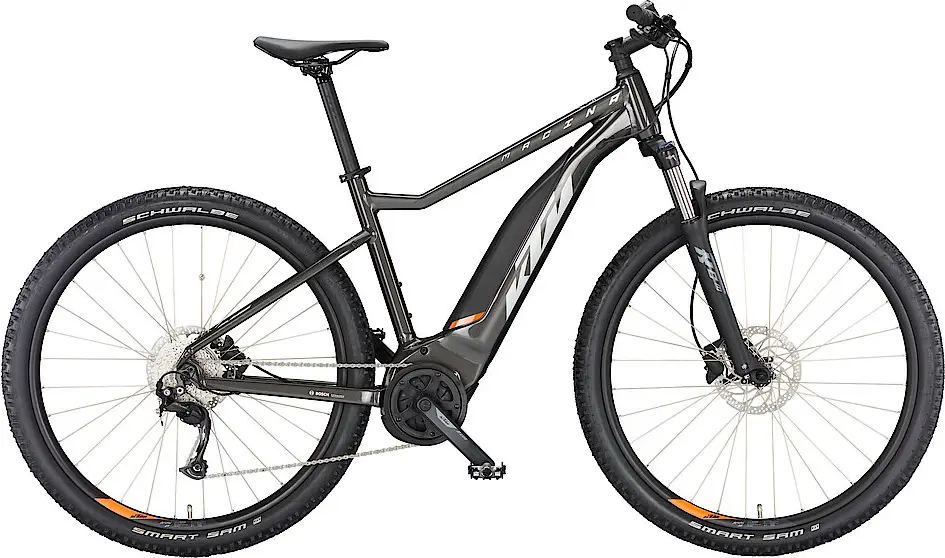

2023 KTM

MACINA RIDE 591

A 700c aluminum frame hardtail crosscountry e-bike with mid-range components.
Compare the full range

Manufacturer Price

€2,899($3,373)
Weight49.6 lbs
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCM
Wheels700c Aluminum
Drivetrain1 × 9
GroupsetAlivio
MotorBosch 600W 50Nm mid-drive
BatteryBosch 500Wh
BrakesShimano Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA RIDE 591
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

MACINA RIDE 591

27 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA RIDE model range

View Comparison
Sizing
MD

5'4" – 5'10"

LG

5'8" – 6'3"

XL

6'0" – 6'6"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina MTB 29" Alloy6061; UC-PP500Wh Bosch Gen.3 / M-9680

BB Standard: Bosch, Press Fit

Fork

Suntour XCM coil 29" HLO 100mm

Travel: 100mm

Spring Type: Coil

Bottom Bracket

Bosch, press-fit

Headset

Ritchey OE Zero Logic 1.1/8"

Stem

KTM COMP II 7°

Handlebar

KTM COMP II rizer15 700mm

Saddle

KTM Line Sport

Seatpost

KTM COMP II 30.9/400

Type: Rigid

Pedals

MTB-Pedal C280DU alloy

Groupset
Rear Derailleur

Shimano Alivio M3100-9 SGS shadow

Crank

KTM E-LINE BNI 170mm Q16

Shifters

Shimano Alivio M3100-9 display

Cassette

Shimano HG201-9 / 11-36

Chain

Shimano E6070-9 e-bike

Brakes

Shimano MT200 / MT200 2-Piston

Type: Shimano Hydraulic Disc

Wheels
Rims

KTM Line - Shimano Acera M3050 CL 32H 100-5QR / Ryde Rival23 32H 622x23C / DT Champion 2.0 silver

Disc Rotors

Shimano RT30 CL 180 / 180

Electric Components
Motor

Bosch ACTIVE PLUS Gen.3 - 25km/h / 50Nm

Battery

Bosch PowerPACK 500Wh

Display

Bosch PURION LCD display

Charger

Bosch COMPACT Charger 2A
