2023 KTM

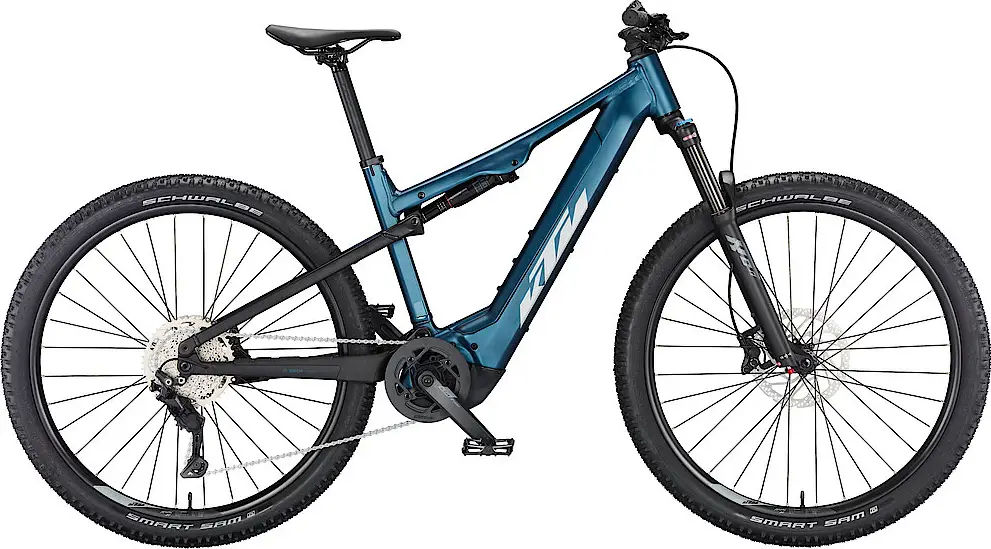

MACINA CHACANA 591

A 700c aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

€4,599($5,327)
Weight54.9 lbs
FrameAluminum
SuspensionFull, 125 / 130mm
ForkSuntour XCR Air
ShockRockShox Deluxe Select
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorBosch 600W 85Nm mid-drive
BatteryBosch 500Wh
BrakesShimano Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MACINA CHACANA 591
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

MACINA CHACANA 591

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA CHACANA model range

View Comparison
Sizing
MD

5'4" – 5'10"

LG

5'8" – 6'3"

XL

6'0" – 6'6"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina Chacana 29" Alloy6061 SLL-E 125mm UDH; PT750 Bosch Gen.4 / M-2286

BB Standard: Bosch, Press Fit

Hanger Standard: UDH

Fork

Suntour XCR 34 Air 29" LOR 130mm 15x110 taper

Travel: 130mm

Spring Type: Air

Shock

RockShox Deluxe Select 230x57.5

Travel: 125mm

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

KTM TEAM II Trail35

Handlebar

KTM COMP II Trail35 rizer15 760mm

Saddle

KTM Line Sport

Seatpost

KTM COMP II 30.9/400

Type: Rigid

Pedals

MTB-Pedal flat VPE-527 alloy

Groupset
Rear Derailleur

Shimano Deore M5120-11/10 SGS shadow+

Crank

KTM E-COMP ISIS 170mm Q16

Shifters

Shimano Deore M4100-10

Cassette

Shimano Deore M4100-10 / 11-46

Chain

KMC e10 EPT e-bike

Brakes

Shimano MT401 / MT420 4-Piston

Type: Shimano Hydraulic Disc

Wheels
Rims

KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black

Disc Rotors

Shimano RT30 CL 203 / 180

Electric Components
Motor

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm

Battery

Bosch PowerTUBE 500Wh SMART SYSTEM hor.

Display

Bosch LED remote SMART SYSTEM

Charger

Bosch STANDARD Charger 4A SMART SYSTEM
