Today’s Deals2022 KTM

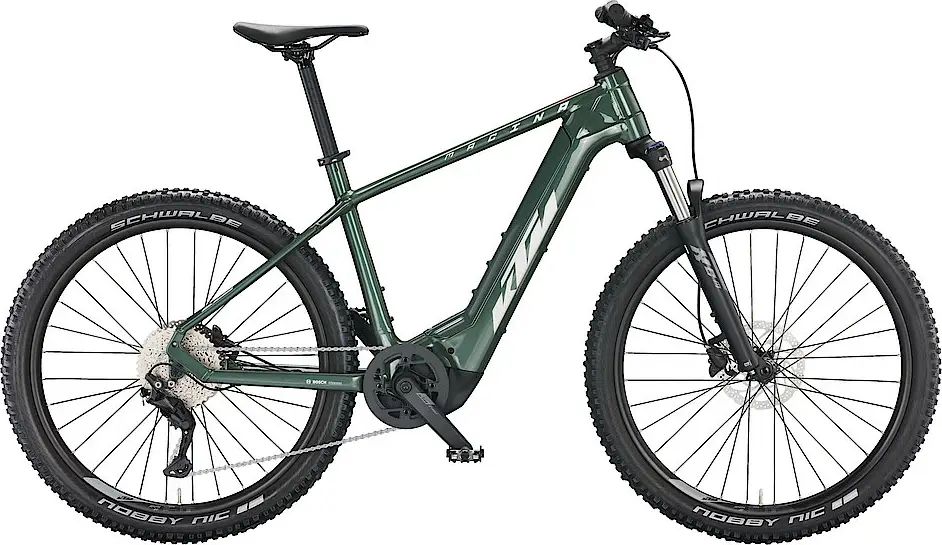

MACINA TEAM 773
A 27.5″ aluminum frame hardtail crosscountry e-bike with upper mid-range components.
Manufacturer Price
€3,899($4,536)| Weight | 54.9 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCM |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 750Wh |
| Brakes | Shimano Hydraulic Disc |
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Macina MTB 27.5" Alloy6061; PT750Wh Bosch Gen.4 / M-2716 BB Standard: Bosch, Press Fit Color: Moss Grey (Silver) |
|---|---|
| Fork | Suntour XCM 34 coil 27.5" NLO 100mm 15x110 taper Travel: 100mm Spring Type: Coil |
| Bottom Bracket | Bosch, press-fit |
| Headset | Acros AICR internal 1.1/8>1.5" angle limit |
| Stem | KTM Comp 7° |
| Handlebar | KTM Comp rizer15 700mm |
| Saddle | KTM Line Sport |
| Seatpost | KTM Comp 30.9/350 Type: Rigid |
| Pedals | MTB-Pedal VP-195E alloy |
| Rear Derailleur | Shimano Deore M4120-10 SGS shadow |
|---|---|
| Crank | KTM COMP ISIS 170mm Q16 |
| Shifters | Shimano Deore M4100-10 display |
| Cassette | Shimano Deore M4100-10 / 11-42 |
| Chain | KMC e10 EPT e-bike |
| Brakes | Shimano MT200 / MT200 2-Piston Type: Shimano Hydraulic Disc |
| Rims | KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 584x30C / DT Champion 2.0 black |
|---|---|
| Disc Rotors | Shimano RT30 CL 180 / EM300 CL 180 |
| Motor | Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm |
|---|---|
| Battery | Bosch PowerTUBE 750Wh hor. smart system |
| Charger | Bosch STANDARD Charger 4A smart system |
First added November 25
Last updated March 31
Not listed for 1,159 days
