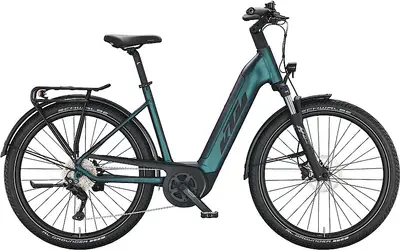

2022 KTM

MACINA GRAN P610

A 650b aluminum frame general urban e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

€3,899($4,536)
Weight61.3 lbs
FrameAluminum
SuspensionHardtail, 80mm
ForkSuntour XCM
Wheels650b Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorBosch 600W 65Nm mid-drive
BatteryBosch 625Wh
BrakesShimano Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

MACINA GRAN P610

30 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.3 / T-2150

BB Standard: Bosch, Press Fit

Color: Green Purple-Flip Matt (Black+sand)

Fork

Suntour XCM 32 ATB coil 29" NLO 80mm taper

Travel: 80mm

Spring Type: Coil

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

KTM Line adjust. 0-60° internal

Handlebar

Ergotec Lady Town GH16 630mm

Saddle

Selle Royal Essenza+

Seatpost

KTM Line 30.9/350

Type: Rigid

Pedals

Trekking-Pedal VP-616 anti-slip

Groupset
Rear Derailleur

Shimano Deore M4120-10 SGS shadow

Crank

KTM LINE BNI 170mm Q16

Shifters

Shimano Deore M4100-10 display

Cassette

Shimano Deore M4100-10 / 11-42

Chain

KMC e10 EPT e-bike

Chain Guide

KTM type 6 for Bosch Gen.4

Brakes

Shimano MT200 / MT200 2-Piston

Type: Shimano Hydraulic Disc

Wheels
Rims

KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival30 32H 584x30C / DT Champion 2.0 black

Disc Rotors

Shimano RT30 CL 180 / EM300 CL 160

Electric Components
Motor

Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm

Battery

Bosch PowerTUBE 625Wh hor.

Display

Bosch INTUVIA LCD Display with Remote

Charger

Bosch COMPACT Charger 2A

Accessories
Fenders

SKS A69R 69mm black matt

Racks

KTM Racktime light (snap-it 1.0)
