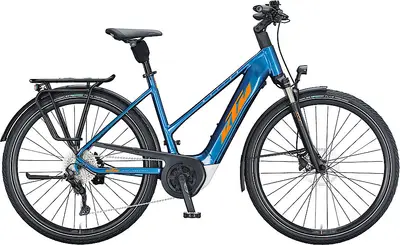

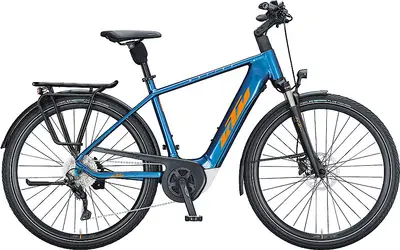

2021 KTM

MACINA TOUR P510

A 700c aluminum frame hybrid e-bike with upper mid-range components and hydraulic disc brakes.
Compare the full range

Manufacturer Price

€3,149($3,460)
Weight58.0 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NCX
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorBosch 600W 65Nm mid-drive
BatteryBosch 500Wh
BrakesHydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

31 mph

MACINA TOUR P510

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full MACINA TOUR model range

View Comparison
Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.3 / T-1150

BB Standard: Bosch, Press Fit

Color: Denim (Orange+white)

Fork

Suntour NCX-D coil LO 63mm

Travel: 63mm

Spring Type: Coil

Bottom Bracket

Bosch, press-fit

Headset

Acros AICR internal 1.1/8"-1.5" angle limit

Stem

KTM Line adjust. 0-60° internal

Handlebar

KTM Line rizer20 640mm

Saddle

Selle Royal Essenza

Seatpost

Suntour SP17-NCX suspension 30.9/350

Type: Suspension

Pedals

Trekking-Pedal VP-616 anti-slip

Groupset
Rear Derailleur

Shimano Deore M4120-10 SGS shadow

Crank

KTM LINE BNI 170mm Q16

Shifters

Shimano Deore M4100-10 display

Cassette

Shimano Deore M4100-10 / 11-42

Chain

KMC e10 EPT e-bike

Chain Guide

KTM type 5 for Bosch Gen.4

Brakes

Shimano MT200 / MT200 2-Piston

Type: Hydraulic Disc

Wheels
Rims

KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport Disc 32H 622x23C / DT Champion 2.0 black

Disc Rotors

Shimano RT30 CL 180 / 160

Electric Components
Motor

Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm

Battery

Bosch PowerTUBE 500Wh hor.

Display

Bosch INTUVIA LCD Display with Remote

Charger

Bosch COMPACT Charger 2A

Accessories
Fenders

SKS A55K 55mm black matt

Racks

KTM Racktime tour (snap-it 1+2)

Rider Notes
Riders Also Viewed

Last updated May 28
Not listed for 1,149 days
