2021 KTM

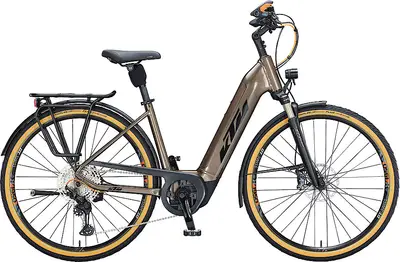

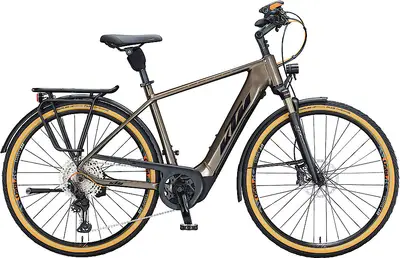

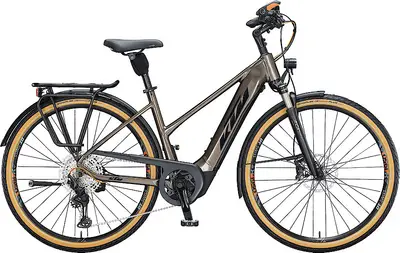

MACINA STYLE 610 NYON

A 700c aluminum frame hybrid e-bike with upper mid-range components and shimano xt hydraulic disc brakes.
Compare the full range

Manufacturer Price

€4,549($5,293)
Weight57.1 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NCX
Wheels700c Aluminum
Drivetrain1 × 12
GroupsetXT, Deore
MotorBosch 600W 85Nm mid-drive
BatteryBosch 625Wh
BrakesShimano XT Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

36 mph

MACINA STYLE 610 NYON

35 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

4'11" – 5'5"

SM

5'2" – 5'7"

MD

5'4" – 5'10"

LG

5'7" – 6'1"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.4 / T-0450

BB Standard: Bosch, Press Fit

Color: Oak (Black+orange)

Fork

Suntour NCX-E air LO 63mm 15QLC

Travel: 63mm

Spring Type: Air

Bottom Bracket

Bosch, press-fit

Headset

KTM Team eTrekking 1.1/8"-1.5" angle limit

Stem

KTM Line UP3 adjust. 0-90°

Handlebar

KTM Line rizer20 640mm

Saddle

Selle Royal Lookin+

Seatpost

Suntour SP17-NCX suspension 30.9/350

Type: Suspension

Pedals

Trekking-Pedal VP-616 anti-slip

Groupset
Rear Derailleur

Shimano Deore XT M8100-12 SGS shadow+

Crank

KTM TEAM ISIS 170mm Q16

Shifters

Shimano Deore M6100-12 display

Cassette

Shimano Deore M6100-12 / 10-51

Chain

Shimano Deore M6100-12

Chain Guide

KTM type 1 for Bosch Gen.4

Brakes

Shimano Deore XT T8100 / M8120 4-Piston

Type: Shimano XT Hydraulic Disc

Wheels
Rims

KTM Line - DT Swiss 350 CL 32H 100-15TA / DT Swiss H1950 32H 622x25TC / DT Alpine III 2.34 black

Disc Rotors

Shimano RT64 CL 180 / 160

Electric Components
Motor

Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm

Battery

Bosch PowerTUBE 625Wh hor.

Display

Bosch NYON TFT Touch Display with Remote

Charger

Bosch STANDARD Charger 4A

Accessories
Fenders

SKS A55K 55mm black matt

Racks

KTM Racktime tour (snap-it 1+2)
