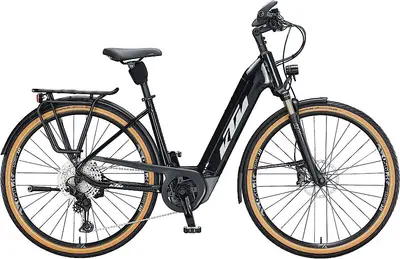

2021 KTM

MACINA STYLE 610

A 700c aluminum frame hybrid e-bike with upper mid-range components and shimano xt hydraulic disc brakes.
Compare the full range

Manufacturer Price

€4,249($4,941)
Weight56.9 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NCX
Wheels700c Aluminum
Drivetrain1 × 12
GroupsetXT, Deore
MotorBosch 600W 85Nm mid-drive
BatteryBosch 625Wh
BrakesShimano XT Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

36 mph

MACINA STYLE 610

35 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.4 / T-0450

BB Standard: Bosch, Press Fit

Color: Metallic Black (Silver+grey)

Fork

Suntour NCX-E air LO 63mm 15QLC

Travel: 63mm

Spring Type: Air

Bottom Bracket

Bosch, press-fit

Headset

KTM Team eTrekking 1.1/8"-1.5" angle limit

Stem

KTM Line UP3 adjust. 0-90°

Handlebar

KTM Line rizer20 640mm

Saddle

Selle Royal Lookin+

Seatpost

Suntour SP17-NCX suspension 30.9/350

Type: Suspension

Pedals

Trekking-Pedal VP-616 anti-slip

Groupset
Rear Derailleur

Shimano Deore XT M8100-12 SGS shadow+

Crank

KTM TEAM ISIS 170mm Q16

Shifters

Shimano Deore M6100-12 display

Cassette

Shimano Deore M6100-12 / 10-51

Chain

Shimano Deore M6100-12

Chain Guide

KTM type 1 for Bosch Gen.4

Brakes

Shimano Deore XT T8100 / M8120 4-Piston

Type: Shimano XT Hydraulic Disc

Wheels
Rims

KTM Line - DT Swiss 350 CL 32H 100-15TA / DT Swiss H1950 32H 622x25TC / DT Alpine III 2.34 black

Disc Rotors

Shimano RT64 CL 180 / 160

Electric Components
Motor

Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm

Battery

Bosch PowerTUBE 625Wh hor.

Display

Bosch INTUVIA LCD Display with Remote

Charger

Bosch STANDARD Charger 4A

Accessories
Fenders

SKS A55K 55mm black matt

Racks

KTM Racktime tour (snap-it 1+2)
