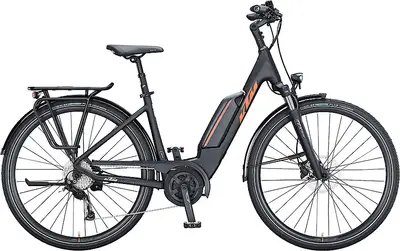

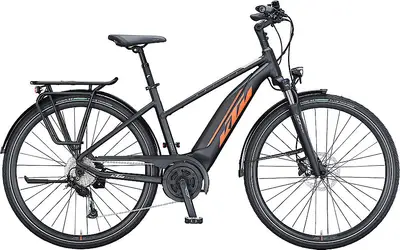

2021 KTM

MACINA FUN A510

A 700c aluminum frame hybrid e-bike with mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

€2,849($3,313)
Weight53.8 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NEX
Wheels700c Aluminum
Drivetrain1 × 9
GroupsetAlivio
MotorBosch 600W 50Nm mid-drive
BatteryBosch 500Wh
BrakesShimano Hydraulic Disc
View on ktm-bikes.atLearn about KTM
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

31 mph

MACINA FUN A510

35 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Macina Trekking Onroad Alloy6061; UC-PP500Wh Bosch Gen.3 / T-9700

BB Standard: Bosch, Press Fit

Color: Black Matt (Orange+grey)

Fork

Suntour NEX-E25 coil NLO 63mm

Travel: 63mm

Spring Type: Coil

Bottom Bracket

Bosch, press-fit

Headset

Ritchey Zero Logic OE 1.1/8"

Stem

KTM Line UP3 adjust. 0-90°

Handlebar

KTM Line rizer20 640mm

Saddle

Selle Royal Essenza

Seatpost

KTM Line Elegance suspension 30.9/300

Type: Suspension

Pedals

Trekking-Pedal VP-616 anti-slip

Groupset
Rear Derailleur

Shimano Alivio M3100-9 SGS shadow

Crank

KTM LINE BNI 170mm Q16

Shifters

Shimano Alivio M3100-9 display

Cassette

Shimano HG201-9 / 11-36

Chain

Shimano E6070-9 e-bike

Chain Guide

SKS Chainbow 38T

Brakes

Shimano MT200 / MT200 2-Piston

Type: Shimano Hydraulic Disc

Wheels
Rims

KTM Line - Shimano MT200 CL 32H 100-5QR / Ambrosio Track Disc 32H 622x20C / DT Champion 2.0 black

Disc Rotors

Shimano RT30 CL 180 / 160

Electric Components
Motor

Bosch ACTIVE PLUS Gen.3 - 25km/h / 50Nm

Battery

Bosch PowerPACK 500Wh

Display

Bosch PURION LCD Display

Charger

Bosch COMPACT Charger 2A

Accessories
Fenders

SKS B46R 46mm black glossy

Racks

KTM Racktime tour (snap-it 1+2)
