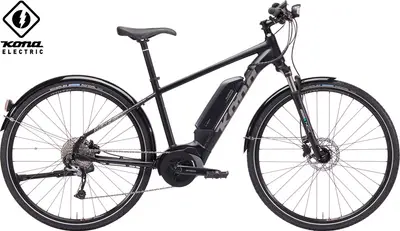

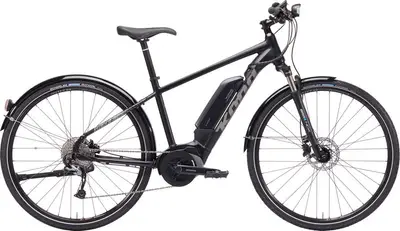

Splice-E
A 700c aluminum frame hybrid e-bike with mid-range components and hydraulic disc brakes.
MSRP | $3,299 |
---|---|
Frame | Aluminum |
Suspension | Hardtail, 63mm |
Fork | Suntour NCX |
Wheels | 700c Aluminum |
Drivetrain | 1 × 9 |
Groupset | Alivio, FSA |
Motor | Bosch 250W 50Nm mid-drive |
Battery | Bosch 400Wh |
Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Frame | Kona 6061 Aluminum Butted Color: Matt Black w/ Dark Silver Decals |
---|---|

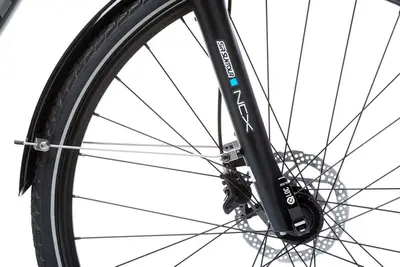

Fork | Suntour NCX D LO Coil Spring 63mm Tapered 100 Spacing Travel: 63mm Spring Type: Coil |
Shock | n/a Spring Type: Coil |
Bottom Bracket | n/a |
Headset | FSA No.57B |
Stem | Kona Control |
Handlebar | Kona Aluminum Riser |
Saddle | WTB Pure Sport |
Seatpost | Kona Thumb w/Offset 31.6mm Type: Rigid |
Pedals | Kona JS2 |
Grips | Kona Key Grip |

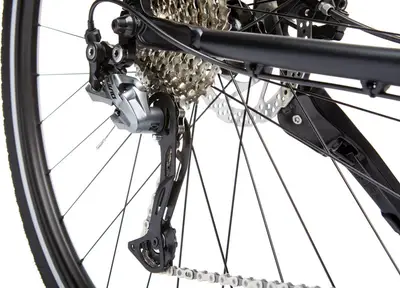

Rear Derailleur | Shimano Alivio |
---|---|
Front Derailleur | n/a |
Crank | FSA E-Bike, 38t |
Shifters | Shimano Alivio |
Cassette | Shimano Alivio 11-34t 9spd |
Chain | KMC X9 |
Chain Guide | FSA E-Bike Chain Guard |
Brakes | Shimano Hydraulic Type: Hydraulic Disc |
Brake Levers | Shimano Hydraulic |
Rims | WTB SX19 |
---|---|
Spokes | Stainless Black 14g |
Front Hub | Formula 100x15mm |
Rear Hub | Formula 135x10mm |
Tires | Front: Schwalbe Marathon Mondial HS 428 700x40c, Rear: Schwalbe Marathon Mondial HS 428 700x40c |
Disc Rotors | Shimano 160mm |
Motor | Bosch Active Line Plus 20MPH |
---|---|

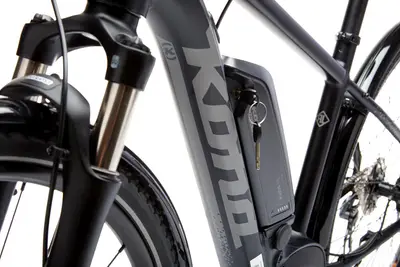

Battery | Bosch PowerPack 400W Recycling Program: ♻️ Call2Recycle |
Display | Bosch Intuvia |
Charger | 2A Compact Charger |
