Front: Schwalbe Tyrago 700x40c, Rear: Schwalbe Tyrago 700x40c

The Splice’s durability is inspired by our legendary mountain bikes, mixing suspension and comfort that embrace the daily commute or weekend neighborhood rides. The butted aluminum frame is light, dependable and proven to be durable when faced with pot-holed streets, gravel paths and brick-road back alleys. And when it’s matched to our comfort geometry, the Splice is the best of both worlds: pure urban style and light-duty mountain bike.

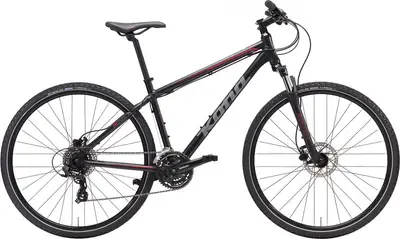

Kona Splice

A 700c aluminum frame hybrid bike with mid-range components and tektro hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Suntour NEX
Wheels	700c Aluminum
Drivetrain	3 × 8
Groupset	Tourney, Altus
Brakes	Tektro Hydraulic Disc

Frame	Kona 6061 Aluminum Butted
Fork	Suntour NEX Coil Spring 63mm Travel: 63mm Spring Type: Coil
Shock	n/a
Bottom Bracket	FSA 7420
Headset	FSA No. 10P
Stem	Kona Control
Handlebar	Kona Aluminum Riser
Saddle	Kona Crosstrail
Seatpost	Kona Thumb w/Offset 27.2mm Type: Rigid
Pedals	Wellgo Platform
Grips	Kona Control

Rear Derailleur	Shimano Tourney TX
Front Derailleur	Shimano M191
Crank	22/32/44t
Shifters	Shimano Acera Rapidfire Plus
Cassette	Shimano Altus 11-34t 8spd
Chain	KMC Z72
Chain Guide	n/a
Brakes	Tektro HDM285 Type: Tektro Hydraulic Disc
Brake Levers	Tektro HDM285

Rims	Double wall alloy
Spokes	Stainless Black 15g fr /14g rr
Front Hub	Joytech 100x9mm
Rear Hub	Joytech 135x10mm
Tires	Front: Schwalbe Tyrago 700x40c, Rear: Schwalbe Tyrago 700x40c
Disc Rotors	Tektro HDM285 160mm

2017 KonaSplice

2017 Kona
Splice
