Front: CST C1436 700x42c, Rear: CST C1436 700x42c

It’s the ultimate fusion of Kona’s mountain-bike heritage and our commuting savvy. The result is a value-loaded bike that can jump between trail and pavement lickety-split. Comfort and confidence is balanced with efficiency and quick handling. Outfitted with a 9-speed Shimano drivetrain, smooth weld frame, lockout suspension fork, and hydraulic disc brakes, the Splice DL is perfect for the cyclist who likes a lot of everything.

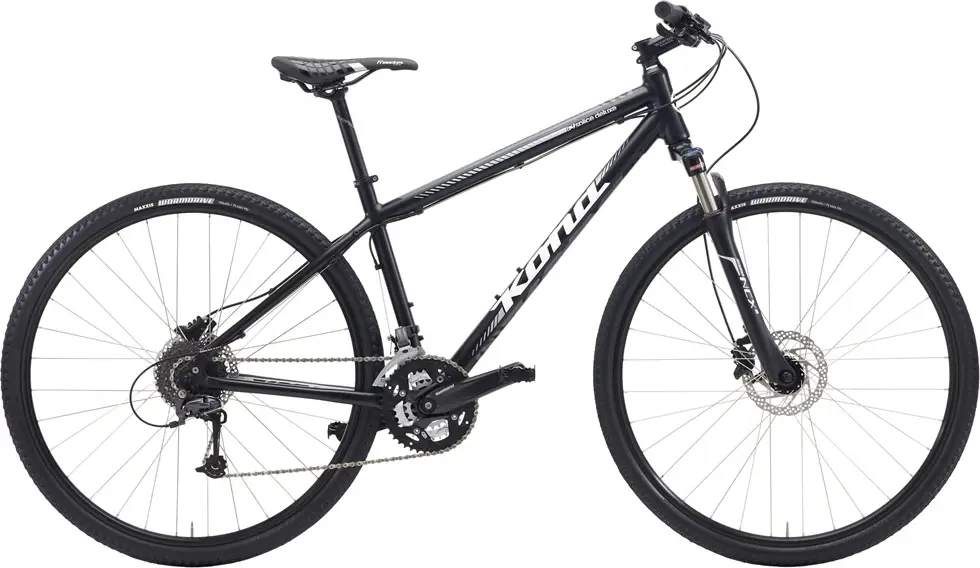

Kona SPLICE DELUXE

A 700c aluminum frame hybrid bike with mid-range components and shimano hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Suntour NCX
Wheels	700c Aluminum
Drivetrain	3 × 9
Groupset	Deore, Alivio
Brakes	Shimano Hydraulic Disc

Frame	Kona 6061 Aluminum Butted
Fork	Suntour NCX D LO 63mm Travel: 63mm Spring Type: Coil
Shock	n/a
Bottom Bracket	Shimano UN26
Headset	TH ZST No.10
Stem	Kona Control
Handlebar	Kona Aluminum Riser
Saddle	Freedom Aon
Seatpost	Kona Thumb w/Offset Type: Rigid
Pedals	Wellgo Platform
Grips	Kona Control

Rear Derailleur	Shimano Deore
Front Derailleur	Shimano Altus
Crank	22/32/44t
Shifters	Shimano Alivio
Cassette	Shimano Acera 11-34t 9spd
Chain	KMC X9
Brakes	Shimano Hydraulic Type: Shimano Hydraulic Disc
Brake Levers	Shimano Hydraulic

Rims	WTB SX17
Spokes	Sandvik Stainless 15g fr /14g rr
Front Hub	Joytech
Rear Hub	Joytech
Tires	Front: CST C1436 700x42c, Rear: CST C1436 700x42c
Disc Rotors	Shimano 160mm

2015 KonaSPLICE DELUXE

2015 Kona
SPLICE DELUXE
