Front: Schwalbe Tyrago 700x40c, Rear: Schwalbe Tyrago 700x40c

The ultimate blend of function and fun, the Splice returns with its quick handling yet comfortable geometry, a bike perfectly designed to ride everything the utilitarian cyclist can throw at it. With a wide-range 24-speed Shimano drivetrain, 63mm front fork with lockout, narrowish 40c tires and hydraulic disc brakes, the Splice is perhaps the most value-laden crosstrail bike on the market.

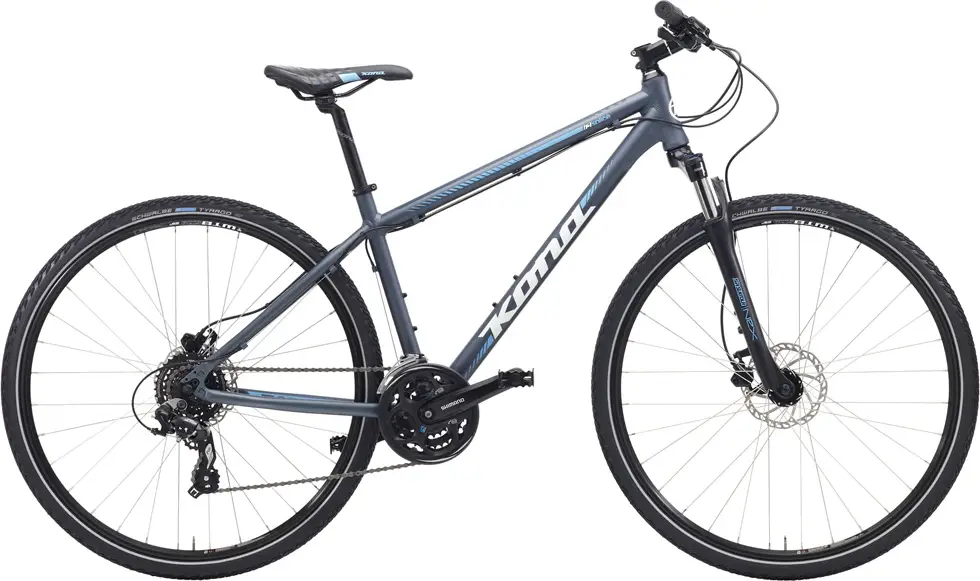

Kona SPLICE

A 700c aluminum frame hybrid bike with modest components and tektro hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Suntour NEX
Wheels	700c Aluminum
Drivetrain	3 × 8
Groupset	Altus, Acera
Brakes	Tektro Hydraulic Disc

Frame	Kona 6061 Aluminum Butted
Fork	Suntour NEX HLO DS700C 63mm Travel: 63mm Spring Type: Coil
Shock	n/a
Bottom Bracket	FSA 7420
Headset	TH ZST No.10
Stem	Kona Control
Handlebar	Kona Aluminum Riser
Saddle	Kona Crosstrail
Seatpost	Kona Thumb Type: Rigid
Pedals	Wellgo Platform
Grips	Kona Control

Rear Derailleur	Shimano Altus
Front Derailleur	Shimano M191
Crank	22/32/44t
Shifters	Shimano Acera Rapidfire Plus
Cassette	Shimano HG31 11-34t 8spd
Chain	KMC Z72
Brakes	Tektro HDC-M290 Type: Tektro Hydraulic Disc
Brake Levers	Tektro HDC-M290

Rims	WTB SX19
Spokes	Sandvik Stainless 15g fr /14g rr
Front Hub	Joytech
Rear Hub	Joytech
Tires	Front: Schwalbe Tyrago 700x40c, Rear: Schwalbe Tyrago 700x40c
Disc Rotors	Tektro HDC-M290 160mm

2015 KonaSPLICE

2015 Kona
SPLICE
