The bicycle has the opportunity to play a pivotal role in the current transportation woes of car culture. To overcome barriers to riding bicycles on a daily basis-factors that may include age, health, location, load, hills or excessive distance, Kona introduces our first electric assist bicycles. Armed with a 24-volt, 250W battery assisted Pedelec motor that provides smooth power assist when and where you need it. With a range up to 100km, with lights, racks and out of the way battery storage, the Ticket is the answer to reliable, self-propelled transportation for a wide variety of users and uses.

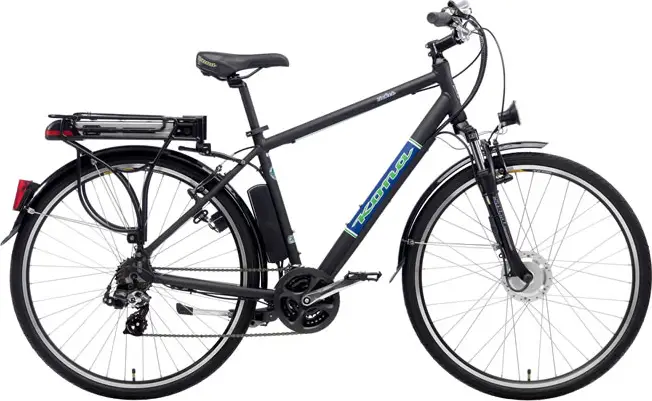

Kona TICKET (ELECTRIC)

48cm

51cm

54cm

A 700c aluminum frame general urban e-bike with mid-range components and tektro rim brakes.

Frame	Aluminum
Suspension	Hardtail
Fork	Suntour
Wheels	700c Aluminum
Drivetrain	3 × 7
Groupset	Tourney
Brakes	Tektro Rim

Frame	Kona 7005 Aluminum Butted
Fork	SR Suntour
Bottom Bracket	VP
Headset	VP
Stem	Kalloy Adjustable
Handlebar	Zoom Riser
Saddle	Velo/Kona
Seatpost	Zoom Type: Rigid
Pedals	VP
Grips	Velo

Rear Derailleur	Shimano RD-TX71
Front Derailleur	Shimano C101
Crank	44/32/22
Shifters	SL-TX50
Cassette	Shimano (7 spd)
Chain	Shimano CN-HG50
Brakes	Tektro 857 Type: Tektro Rim
Brake Levers	WuXing Alloy w/brake sensor

Rims	Alex Double Wall
Spokes	Stainless 13/14g
Front Hub	8-Fun Brushless geared
Rear Hub	Joytech
Tires	Front: CST 700x40c, Rear: CST 700x40c

Battery	HiTech Energy
Remote	FMN/Wettsem
Charger	HiPower
