Fox 32 F29 100-RL TA 100mm w/15mm Dropouts, Tapered Steerer

Kona Race Light Scandium Butted, 4" Travel w/Mag Rockers

Kona Energy Bar (31.8mm x 680mm=16-18" / 710mm=19" +)

Kona XC/BC (6°± ; 16=90, 18-20=105,21=120mm)

It's the ultimate Unimog, jet-pack tractor of the dual suspension mountain bike world. There's no place this bike can't roll. A boost valve RP23 rear Fox shock with 100mm of travel, tapered headtube, 15mm thru-axle front hub, and Easton wheelset means racier, stiffer, and light as a feather. Ride it all young beast, now there's no excuse.

Kona HEI-HEI 2-9

40.7cm

45.7cm

48.3cm

50.8cm

55.9cm

A 26″ aluminum frame full suspension crosscountry bike with upper mid-range components and shimano slx mechanical disc brakes.

Frame	Aluminum
Suspension	Full, 100 / 100mm
Fork	Fox Float 32
Shock	Fox
Wheels	26″ Aluminum
Drivetrain	3 × 9
Groupset	XT
Brakes	Shimano SLX Mechanical Disc

Frame	Kona Race Light Scandium Butted, 4" Travel w/Mag Rockers
Fork	Fox 32 F29 100-RL TA 100mm w/15mm Dropouts, Tapered Steerer Travel: 100mm Spring Type: Air
Shock	Fox Float RP23 (7.25 x 1.75) Travel: 100mm
Bottom Bracket	Shimano SLX
Headset	Gravity DL
Stem	Kona XC/BC (6°± ; 16=90, 18-20=105,21=120mm)
Handlebar	Kona Energy Bar (31.8mm x 680mm=16-18" / 710mm=19" +)
Saddle	WTB Rocket V Comp
Seatpost	Kona XC/BC Type: Rigid
Pedals	Shimano M520 Clipless
Grips	Kona Race Light

Rear Derailleur	Shimano XT Shadow
Front Derailleur	Shimano XT
Crank	44/32/22
Shifters	Shimano XT
Cassette	Shimano Deore (11-34, 9spd)
Chain	Shimano HG73
Brakes	Shimano SLX Disc 7" fr / 6" rr Type: Shimano SLX Mechanical Disc
Brake Levers	Shimano SLX Disc

Rims	Easton XC2 Wheelset
Spokes	Easton XC2 Wheelset
Front Hub	Easton XC2 Wheelset
Rear Hub	Easton XC2 Wheelset
Tires	Maxxis Aspen 26 x 2.1 Kevlar

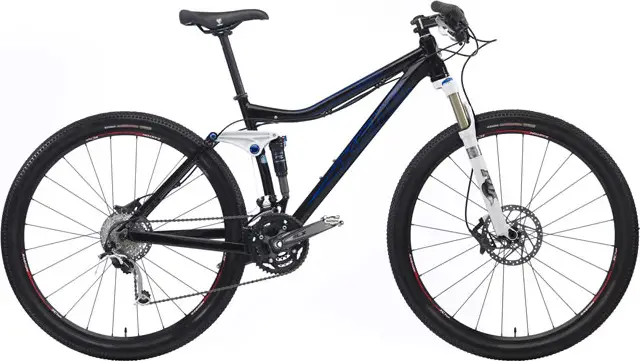

2010 KonaHEI-HEI 2-9

2010 Kona
HEI-HEI 2-9
