Kona Road (6°±, 45-49=75, 52-56=90, 58-62=100mm)

The paths/roads/streets/tracks and trails of the world can be rough. For those looking to take the bite out of their bike, we offer the Dew FS. Using a curved, sloping top tube for better standover height, we take all the performance and durability and efficiency of our Dew commuter bikes and bless it with a spot of suspension. Not enough to slow you down, but just a smattering of travel to make a rough commute smooth as silk-a little less jiggle in your commuting wiggle.

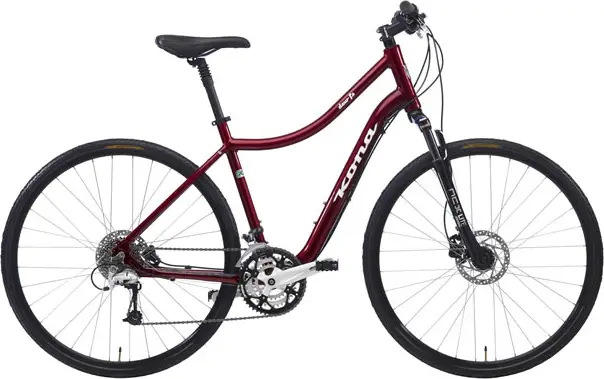

Kona DEW FS

45cm

49cm

52cm

54cm

56cm

58cm

60cm

62cm

A 700c aluminum frame commuter bike with upper mid-range components and shimano hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Suntour NCX
Wheels	700c Aluminum
Drivetrain	3 × 9
Groupset	Deore
Brakes	Shimano Hydraulic Disc

Frame	Kona 7005 Aluminum Butted
Fork	Suntour SF10-NCX-D LO Lite 63mm Travel: 63mm Spring Type: Coil
Shock	N/A
Bottom Bracket	RPM 7420
Headset	TH
Stem	Kona Road (6°±, 45-49=75, 52-56=90, 58-62=100mm)
Handlebar	Kona XC/BC Riser (31.8mm x 620mm Wide)
Saddle	Kona Comfort
Seatpost	Kona Suspension Type: Suspension
Pedals	Wellgo LU-A9
Grips	Kona Race Light

Rear Derailleur	Shimano Deore
Front Derailleur	Shimano Deore
Crank	48/36/26
Shifters	Shimano Deore
Cassette	Shimano HG50 (11-32, 9spd)
Chain	Shimano HG53
Brakes	Shimano 486 Hydraulic Disc 6" Type: Shimano Hydraulic Disc
Brake Levers	Shimano 486 Hydraulic Disc

Rims	Alex Ace-18
Spokes	Sandvik Stainless 15g fr/14g rr
Front Hub	Formula Disc
Rear Hub	Shimano M475 Disc
Tires	Continental CountryRide 700x37C

2010 KonaDEW FS

2010 Kona
DEW FS
