Kona XC/BC (6°± ; 14-16=75mm, 17-19=90mm, 20-22=105mm)

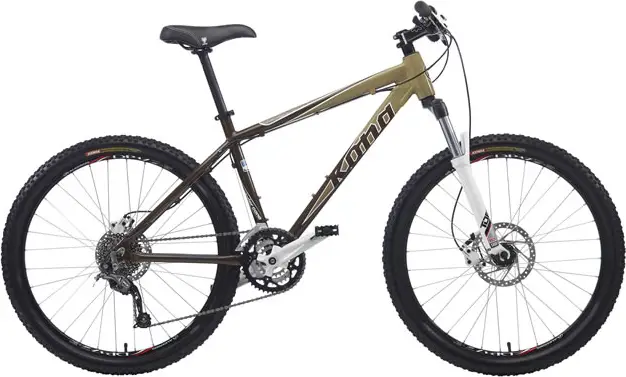

Ride forever. Ride wherever. Kona's legacy-laden Cinder Cone has be delivering riders into the forested folds of the world for over 20 years. And it's showing no signs of letting up. Beautiful aluminum frameset, with a new internal headset for added robustness, outfitted with a supple and svelte Rock Shox Tora SL front fork, and the 2010 Cinder Cone redefines the performance vs. cost equation.

Kona CINDER CONE

40.6cm

43.2cm

45.7cm

48.3cm

50.8cm

55.9cm

A 26″ aluminum frame hardtail crosscountry bike with upper mid-range components.

Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	RockShox
Wheels	26″ Aluminum
Drivetrain	3 × 9
Groupset	SLX, Deore
Brakes	Shimano Hydraulic Disc

Frame	Kona All-Mountain Aluminum Butted
Fork	RockShox Tora SL 100mm Travel: 100mm
Shock	N/A
Bottom Bracket	FSA Powerdrive
Headset	TH
Stem	Kona XC/BC (6°± ; 14-16=75mm, 17-19=90mm, 20-22=105mm)
Handlebar	Kona XC/BC Riser (31.8mm x 660mm Wide)
Saddle	WTB Speed V Sport SE
Seatpost	Kona Thumb Type: Rigid
Pedals	Wellgo LU-A9
Grips	Kona Race Light

Rear Derailleur	Shimano SLX
Front Derailleur	Shimano Deore
Crank	44/32/22
Shifters	Shimano Deore
Cassette	Shimano Deore (11-32, 9spd)
Chain	KMC HG53
Brakes	Shimano 486 Hydraulic Disc 7" fr / 6" rr Type: Shimano Hydraulic Disc
Brake Levers	Shimano 486 Hydraulic Disc

Rims	Alex DP17
Spokes	Sandvik Stainless 15g fr/14g rr
Front Hub	Formula Disc
Rear Hub	Shimano M475 Disc
Tires	Maxxis Aspen 26 x 2.1

2010 KonaCINDER CONE

2010 Kona
CINDER CONE
