Kona Race Light Scandium Butted, 160mm Magic Link Travel

Kona XC/BC Deluxe Riser (31.8mm x 660mm Wide)

Kona XC/BC Deluxe (6°± ; 15"=75mm, 17-19"=90mm, 20-22=105mm)

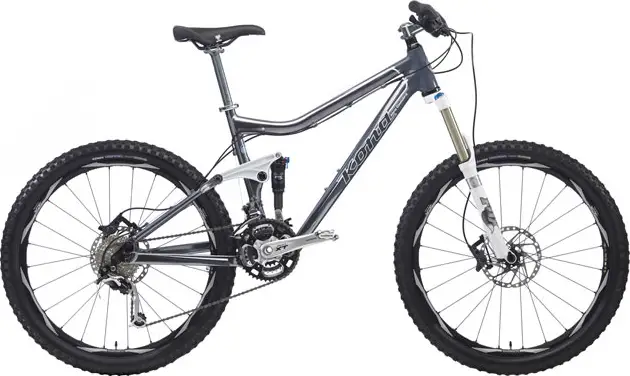

A slice of magic pie for riders looking to forego the quiver and do it all with one ride. From XC to backcountry, enduro descents to technical ascents, the all-new Abra Cadabra delivers a wide range of riding applications thanks to a hat full of tricks. Check it: a sub 30-pound four-inch travel bike with the ability to jump to six-inches in the rear when certain "situations" arise. Built using a Scandium frame, with a tapered headtube and a 15mm front axle for super stability, not to mention all sorts of sexy cold forged frame components and beautiful lines. Featuring Kona's G2 Magic Link technology, which instinctively changes suspension performance and bike geometry depending on terrain and type of riding, this is truly a ride for the ages. Learn more about the Magic Link.

Kona ABRA CADABRA

40.6cm

43.2cm

45.7cm

48.3cm

50.8cm

55.9cm

A 26″ aluminum frame full suspension enduro bike with upper mid-range components and shimano slx mechanical disc brakes.

Frame	Aluminum
Suspension	Full, 160 / 150mm
Fork	Fox Float 32
Shock	Fox
Wheels	26″ Aluminum
Drivetrain	3 × 9
Groupset	XT, SLX
Brakes	Shimano SLX Mechanical Disc

Frame	Kona Race Light Scandium Butted, 160mm Magic Link Travel BB Standard: BSA, 73mm, Threaded
Fork	Fox 32 Float RL 150mm w/15mm Dropouts Travel: 150mm Spring Type: Air
Shock	Fox Float RP23 (6.5 x 1.5) Travel: 160mm
Bottom Bracket	Shimano XT
Headset	Gravity DL
Stem	Kona XC/BC Deluxe (6°± ; 15"=75mm, 17-19"=90mm, 20-22=105mm)
Handlebar	Kona XC/BC Deluxe Riser (31.8mm x 660mm Wide)
Saddle	WTB Rocket V Comp
Seatpost	Kona XC/BC Deluxe Type: Rigid
Pedals	Shimano M520 Clipless
Grips	Kona Race Light

Rear Derailleur	Shimano XT Shadow
Front Derailleur	Shimano SLX
Crank	44/32/22
Shifters	Shimano SLX
Cassette	Shimano Deore (11-34, 9spd)
Chain	KMC HG53
Brakes	Shimano SLX Disc 7" Type: Shimano SLX Mechanical Disc
Brake Levers	Shimano SLX Disc

Rims	Shimano XT Wheelset
Spokes	Shimano XT Wheelset
Front Hub	Shimano XT Wheelset
Rear Hub	Shimano XT Wheelset
Tires	Maxxis Aspen 26 x 2.25 Kevlar

2010 KonaABRA CADABRA

2010 Kona
ABRA CADABRA
