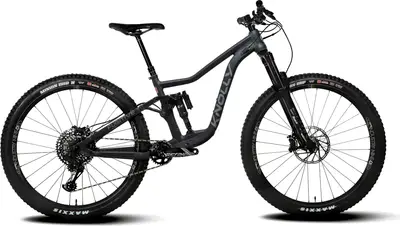

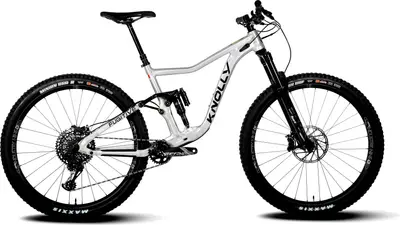

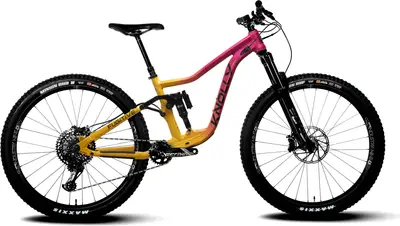

Fugitive 138 GX
A 29″ aluminum frame full suspension trail bike with high-end components.
Compare the full range
Manufacturer Price
CA$3,809($2,862)Frame | Aluminum |
---|---|
Suspension | Full, 138 / 150mm |
Fork | Marzocchi Bomber Z1 |
Shock | Fox Float X Performance |
Wheels | 29″ Aluminum |
Drivetrain | 1 × 12 |
Groupset | GX Eagle |
Brakes | Hydraulic Disc |
Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Fugitive model range
View Comparison5'1" – 5'8"
5'6" – 5'11"
5'9" – 6'3"
6'1" – 6'5"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2024
The most popular 29er Knolly trail bike debuts with a completely new tubeset, straight top tube design, and refreshed geo.
Apr 2024 · Knolly Bikes
The new Fugitive receives updated geometry and undergoes the straight top tube treatment.
Aug 2021 · Jason_Schroeder
The established climbing machine elevates its well-rounded abilities with key updates that improve descending abilities.
Increased reach and wheelbase improves composure and stability descending
FOX suspension provides bottomless ride for aggressive riding
Incredibly planted and efficient pedaling platform
Low bottom bracket leads to many pedal strikes
29x2.3 Maxxis tires are too narrow for rowdy descents
Lacks playful, trail bike demeanor
Jun 2021 · Travis Engel
The Knolly Fugitive combines eager pedaling with a ruthless appetite for speed. It’s never too much, or too little bike for the occasion.
Efficient, rewarding pedaler
Highly capable for its travel and geometry
Unique combination of stability and maneuverability
Not cheap for an aluminum bike
Not as supple as other bikes around 140mm of travel
Apr 2021
Knolly Bikes revises their Fugitive for 2021, updating the frame geometry and adding a few extra millimeters of rear travel.
Frame | 6066 Aluminum, Custom Titanium Hardware BB Standard: BSA, Threaded Colors: Raw; Moss Green Ltd; Tequila Sunrise Ltd; Anodized Black Ltd |
---|---|
Fork | Marzocchi Z1 29” 150mm 44mm Offset Travel: 150mm Spring Type: Air |
Shock | Fox Float X Performance Travel: 138mm |
Bottom Bracket | SRAM DUB BSA SB+ |
Headset | FSA Orbit ZS44/56 |
Stem | RaceFace Aeffect R 35mm x 50mm |
Handlebar | Spank 35mm x 800mm, 25mm Rise |
Saddle | SDG Bel-Air V3 |
Seatpost | SDG Tellis 170mm, 31.6 Type: Dropper |
Grips | Spank / SDG |
Rear Derailleur | SRAM GX Eagle |
---|---|
Crank | SRAM GX Eagle 170 32T Ring |
Shifters | SRAM GX Eagle |
Cassette | SRAM XG1275 Eagle 10-52T |
Chain | SRAM GX Eagle |
Brakes | Magura MT5 Type: Hydraulic Disc |
Rims | RaceFace Aeffect R 30 Trace 28h J-Bend (XD) OR DT Swiss M1900 SPLINE 28h Straight-Pull (XD) |
---|---|
Tires | Front: Maxxis DHF 29" 2.5" 3C Maxx Terra EXO, Rear: Maxxis DHR2 29" 2.3" 3C Maxx Terra EXO |
Disc Rotors | Magura Storm HC 203mm / 180mm |
Last updated June 29
