2020 KHS

TUCSON

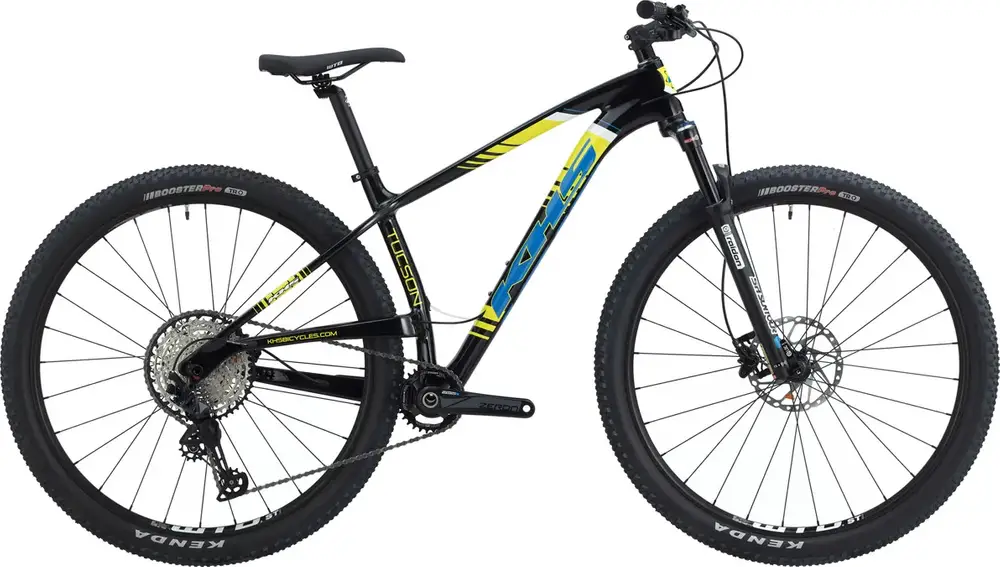

A 29″ carbon frame hardtail crosscountry bike with upper mid-range components.

MSRP$2,499
FrameCarbon
SuspensionHardtail, 100mm
ForkSuntour RAIDON
Wheels29″ Aluminum
Drivetrain1 × 11
GroupsetSLX
BrakesHydraulic Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

TUCSON

27 mph

Similar Bikes

Highest gear

(descending)

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

New KHS Full MSD Carbon 29er w/1.5" Taper Headtube, Disc Only, Internal Cable Routing, 12x148mm Boost, 27.5 Plus & 29 Plus Compatible

BB StandardBB86/BB92, Press Fit

ColorCloud Gray

Fork

SR Raidon 32-LOR, 29 Std/27.5 Plus, 100mm Air, Hydraulic Speed Lock-Out w/External Rebound Damping Adjust, 1-1/8~ 1.5 Alloy Taper, 15x110mm QR, Boost

Travel100mm

Spring TypeAir

Bottom Bracket

PF92

Headset

FSA Orbit C-40-CF-ACB, N.42/CF/ACB, 1-1/8"~1.5" Integrated

Stem

Alloy 3D Forged, 4-Bolt, 6 Degree, 31.8mm, M-L: 80mm, XL: 90mm

Handlebar

Alloy Butted Low Riser, 31.8mm, 720x12mm

Saddle

WTB Volt Sport

Seatpost

Alloy Micro-Adjust, 31.6x350mm

TypeRigid

Pedals

n/a

Grips

Q2 Lock-on

Groupset
Rear Derailleur

Shimano SLX RD-M7000

Front Derailleur

n/a

Crank

Samox 2-pc Forged, PF92, Narrow Wide 32T, Boost, M-XL: 175

Shifters

Shimano SLX, SL-M7000, 11-Speed, Trigger, Right Only

Cassette

SunRace, 11-46T, 11-Speed

Chain

KMC X11EL-1 w/MissingLink

Brakes

Shimano MT400 Hydraulic Disc, 180/160mm Rotors Wave12

TypeHydraulic Disc

Brake Levers

Shimano MT400

Wheels
Rims

WTB ST-I23 TCS, Disc, Double Wall, 29x28H, Tubeless-Ready

Spokes

14g Stainless Black w/Alloy Nipples, 28x28

Tires

Kenda Saber Pro, 120TPI Folding, Tubeless-Ready, 29x2.2
