2020 KHS
6600

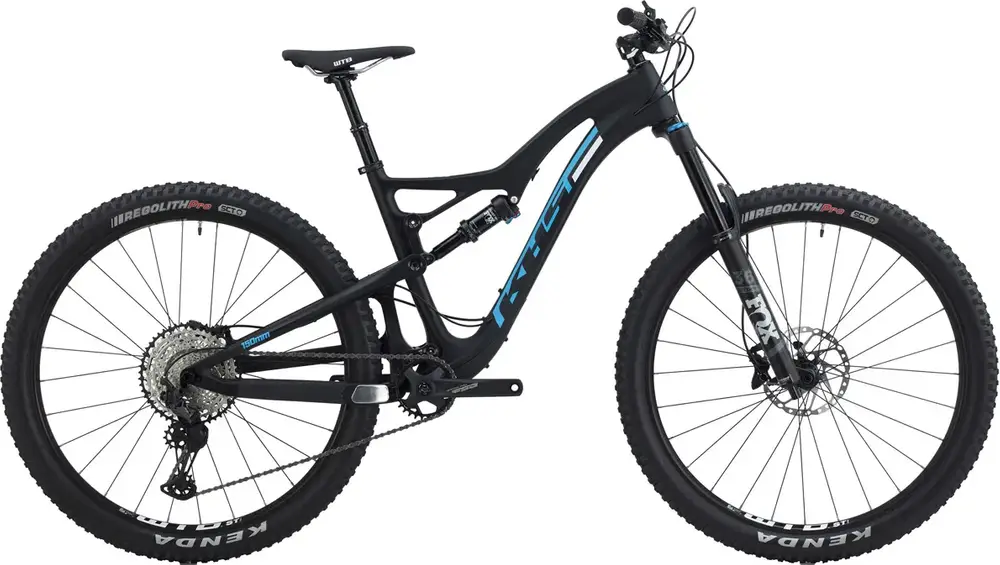

A 27.5″ carbon frame full suspension enduro bike with upper mid-range components.

Manufacturer Price

$4,599

Where to Buy

Similar Bikes

Top Comparison

Insights

Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

6600

26 mph

Similar Bikes

Highest gear

(descending)

Geometry

Specs

Build

Frame	MSD Full Carbon, 29/650B+, 150mm, 1.5 Taper, 12 x 148 Boost Rear Axle, w/Replaceable Derailleur Hanger BB Standard: BB86/BB92, Press Fit Color: Black
Fork	FOX Float 36, 29 Std/27.5+ Evol Air, Rhythm, 160mm, Grip Sweep Adj., Ext Rebound Adj., 1-1/8~1.5 Taper, 15mm x 110 QR Boost, S:27.5", M-XL:29" Travel: 160mm Spring Type: Air
Shock	FOX Float DPS, Performance, 3-Pos, Evol w/LV Eyelet Travel: 150mm
Bottom Bracket	FSA PF92
Headset	FSA Orbit 1.5E, Zero Stack, 1 1/8"~1.5
Stem	FSA Grid 3D Forged, 35mm, S-L:60mm, XL:70mm
Handlebar	FSA Grid 35mm riser, 800mm x 20mm
Saddle	WTB High Tail, CrMo Rail
Seatpost	KS Suspension Rage-I, Integra w/Remote, Travel Adj Type: Dropper
Pedals	n/a
Grips	Q2 Lock-on

Groupset

Rear Derailleur	Shimano New XT RD-M8100
Front Derailleur	n/a
Crank	FSA Gamma Pro , 2 pc., 30T Megatooth, Boost , PF92, S:170, M-XL:175
Shifters	Shimano New SLX, SL-M7100, 12s, Trigger, Right Only
Cassette	Shimano CS-M7100, 10-51T, 12-Speed
Chain	Shimano CN-M7100
Brakes	Shimano MT520 4-Piston, Hydraulic Disc, Servo Wave, 180/160mm, Rotors= RT64 Center Lock Type: Shimano Hydraulic Disc
Brake Levers	Shimano MT501, Servo Wave

Wheels

Rims	WTB ST S:i35, M-XL:i29 TCS, Disc, Double Wall, 28H, Tubeless-Ready, S:27.5", M-XL:29"
Spokes	14/15G Double Butted Stainless, Black w/Alloy Nipples, 28x28
Tires	Kenda Regolith Pro, S:27.5 x 2.6, M-XL:29. x 2.4. 120 TPI Folding, Tubeless Ready, S:27.5", M-XL:29"

Rider Notes

Riders Also Viewed

First added October 26

Last updated July 28

Not listed for 2,131 days

2020 KHS6600
