2020 KHS
4 SEASON 5000

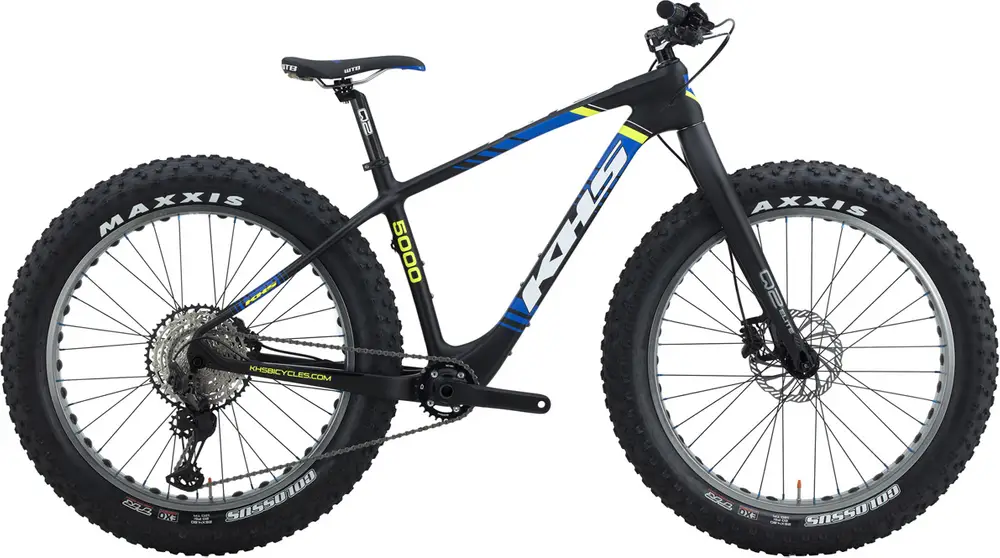

A 26″ carbon frame hardtail fat bike with high-end components.
Compare the full range
Manufacturer Price
$2,999| Frame | Carbon |
|---|---|
| Suspension | Hardtail |
| Fork | Manitou Mastodon Pro |
| Wheels | 26″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT |
| Brakes | Hydraulic Disc |
For This Bike
May 2020 · Traece Craig
An inside look at our first outing on a KHS fat bike in Southern California
| Frame | KHS High Modulus MSD Full Carbon w/1.5 Taper Headtube, Disc Only, Internal Cable Routing Color: Matte Black |
|---|---|
| Fork | High Modulus Full Carbon Straight Blade, w/1.5 Taper 15Q, or Manitou Mastodon Pro 100mm or Wren Fork Option |
| Bottom Bracket | Outboard Cartridge Bearing |
| Headset | FSA Orbit C40-ACB, N.42/CF/ACB, 1-1/8"~1.5" Integrated, Carbon Cap |
| Stem | FSA Grid 3D Forged, 35mm, S:60mm, M-L:70mm |
| Handlebar | FSA Grid 35mm riser, 760mm x 20mm |
| Saddle | WTB Volt Comp |
| Seatpost | Q2 Carbon, 31.6x350mm Type: Rigid |
| Pedals | n/a |
| Grips | Q2 Lock-on |
| Rear Derailleur | Shimano New XT RD-M8100 |
|---|---|
| Front Derailleur | n/a |
| Crank | Samox 2pc Forged w/Outboard Bearing, 28T CNC Alloy Narrow/Wide, S:170, M-L:175 |
| Shifters | Shimano New XT, SL-M8100, 12s, Trigger, Right Only |
| Cassette | Shimano CS-M7100, 10-51T, 12-Speed |
| Chain | Shimano CN-M7100 |
| Brakes | Shimano MT501, Hydraulic Disc, Servo Wave, 180/160mm Wave 12 Rotors Type: Hydraulic Disc |
| Brake Levers | Shimano MT501, Servo Wave |
| Rims | Alloy, 80mm w/Rectangular Holes, 26x32H |
|---|---|
| Spokes | 14G Black Stainless, 32x32, W/Alloy Nipples |
| Tires | Maxxis Colossus, 26x4.8, 120 TPI, Folding |
Last updated October 26
Not listed for 1,640 days
